REAR PACKAGE TRAY REMOVAL/INSTALLATION
id091700020000

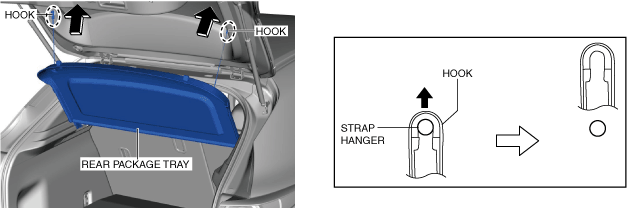

1. Move the hooks in the direction of the arrows shown in the figure to disengage them from the strap hangers.
ac30zw00000159
|

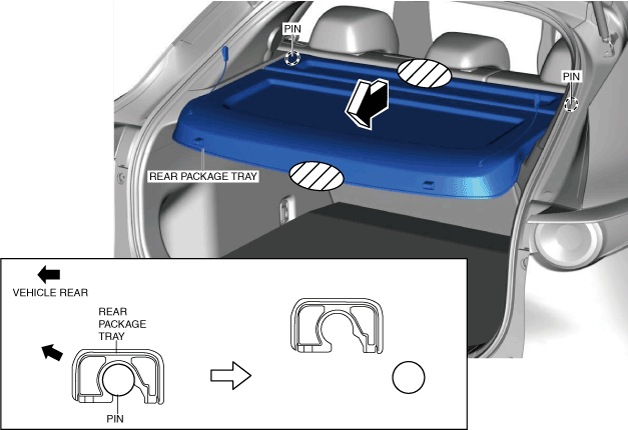

2. Hold the shaded areas shown in the figure and while pulling the rear package tray in the direction of the arrow, remove the pins from the rear package tray.
ac30zw00000160
|
3. Install in the reverse order of removal.
