INNER GARNISH REMOVAL/INSTALLATION

id091700603900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

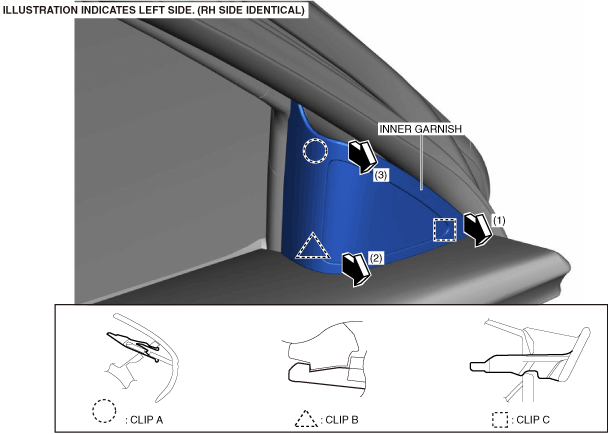

2.  Using a remover tool, move the inner garnish in the order of arrows (1), (2), and (3) shown in the figure, detach the clips A, B and C.

ac30zw00000166

3.  Disconnect the tweeter connector.

4.  Install in the reverse order of removal.

Note

•  When replacing the inner garnish, remove the tweeter. (See TWEETER REMOVAL/INSTALLATION.)
