LOWER PANEL DISASSEMBLY/ASSEMBLY [(E)]
id0917006120x2
Driver-side
L.H.D.
1. Disassemble in the order indicated in the table.

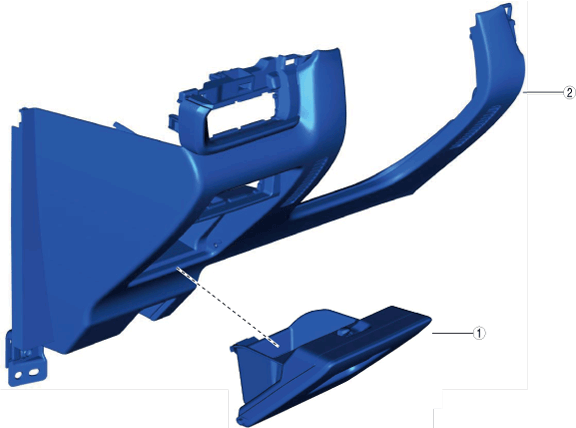

ac30zw00000174
|
|
1
|
Pocket
|
|
2
|
Driver-side lower panel
|
2. Assemble in the reverse order of disassembly.
R.H.D.
1. Disassemble in the order indicated in the table.

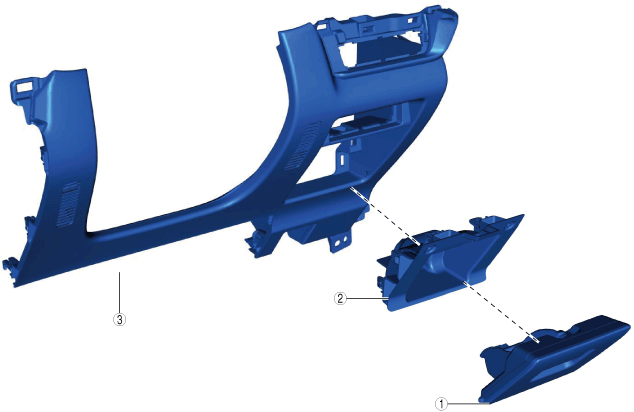

ac30zw00000175
|
|
1
|
Pocket
|
|
2
|
Coin box
|
|
3
|
Driver-side lower panel
|
2. Assemble in the reverse order of disassembly.
Passenger-side
1. Disassemble in the order indicated in the table.

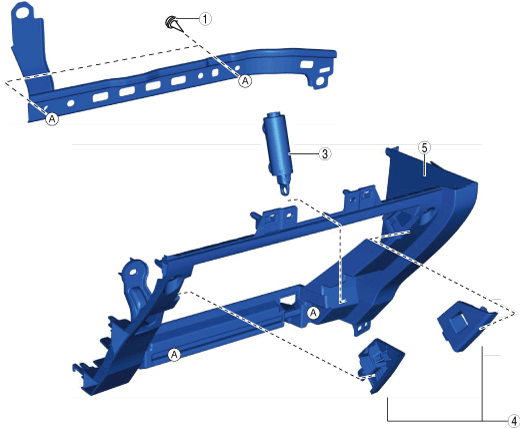

ac30zw00000176
|
|
1
|
Screw
|
|
2
|
Bracket
|
|
3
|
Damper
|
|
4
|
Stopper
|
|
5
|
Passenger-side lower panel
|
2. Assemble in the reverse order of disassembly.
