GLOVE COMPARTMENT REMOVAL/INSTALLATION

id091700800700

Without Passenger-side Knee Air Bag Module

1.  Pull the stay damper in the direction of the arrow shown in the figure and detach the hook.

Caution

•  If the glove compartment is closed without the stay damper attached to the hook, the stay damper may become damaged. Verify that the stay damper is attached to the hook before closing the glove compartment.

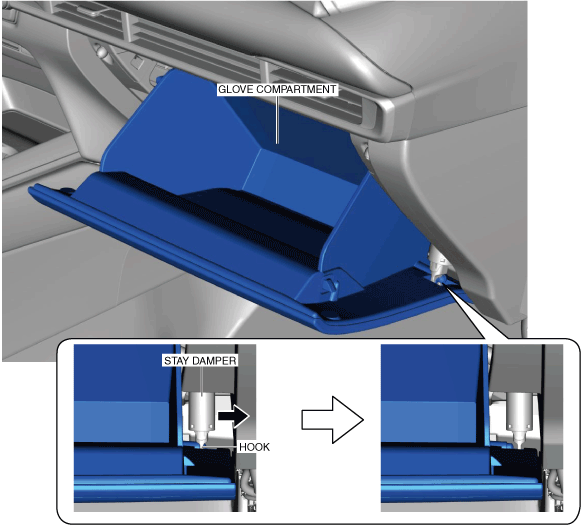

ac30zw00000187

2.  Press both ends of the glove compartment in the directions of the arrows shown in the figure and detach the hooks.

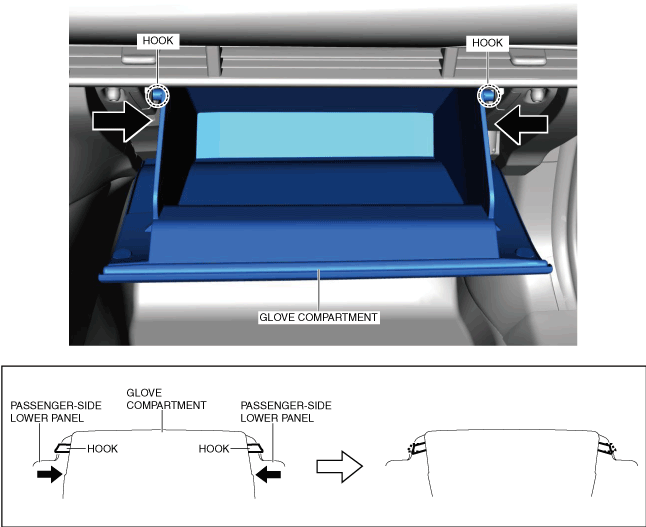

ac30zw00000188

3.  Lower the glove compartment in the direction of arrow (1) shown in the figure, pull it up in the direction of arrow (2), and remove it while detaching the hooks.

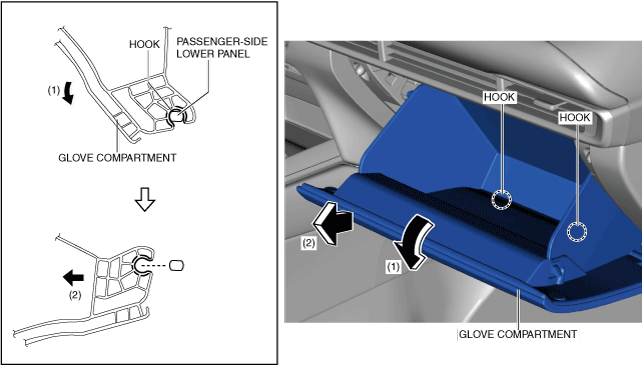

ac30zw00000189

4.  Install in the reverse order of removal.

With Passenger-side Knee Air Bag Module

1.  Pull the stay damper in the direction of the arrow shown in the figure and detach the hook.

Caution

•  If the glove compartment is closed without the stay damper attached to the hook, the stay damper may become damaged. Verify that the stay damper is attached to the hook before closing the glove compartment.

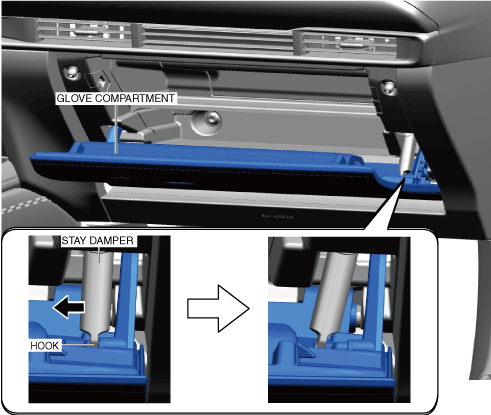

ac30zw00005181

2.  Pull up the glove compartment in the direction of arrow (1) shown in the figure and detach hooks A.

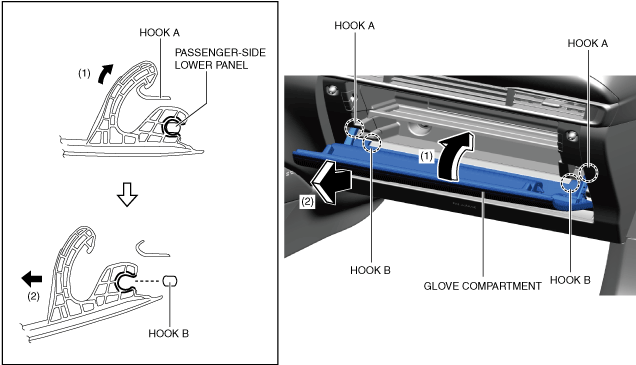

ac30zw00005182

3.  Remove the glove compartment while detaching hooks B in the direction of arrow (2) shown in the figure.

4.  Install in the reverse order of removal.
