A-PILLAR TRIM REMOVAL/INSTALLATION [(E)]
id0917008019x2
Replacement part
|
Clip (with grommet)
Quantity: 1
Location of use: A-pillar trim
|

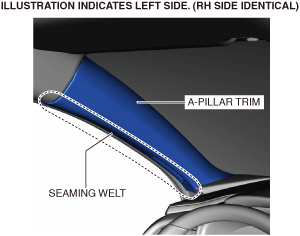

1. Partially peel back the seaming welt.
ac30zw00000239
|

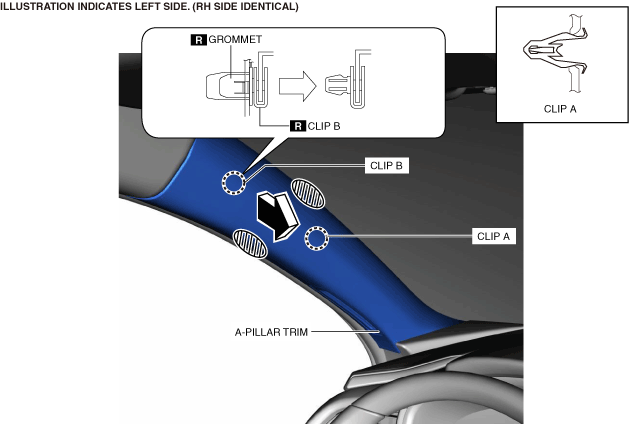

2. Grasp the shaded areas shown in the figure, and pull the A-pillar trim in the direction of the arrow while detaching clip A and clip B.
ac30zw00003406
|

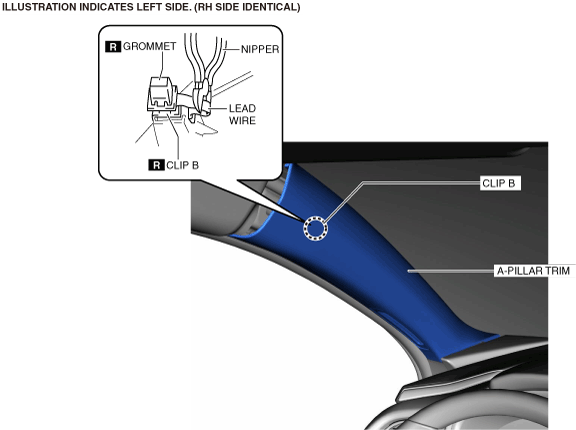

3. Cut the lead wire connecting clip B and the grommet using a nipper.
ac30zw00000241
|

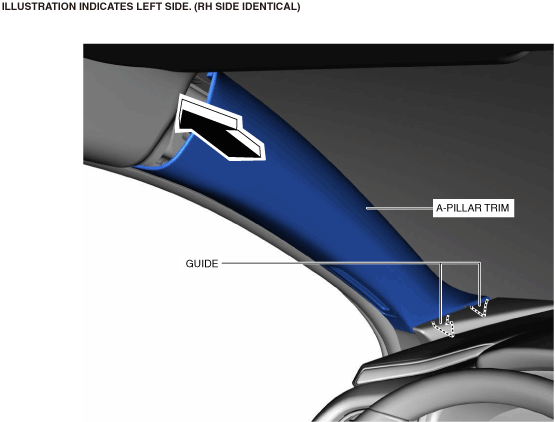

4. Pull the A-pillar trim in the direction of the arrow and remove the A-pillar trim while detaching the guides.
ac30zw00000242
|
5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then detach the hook.
am3zzw00021826
|

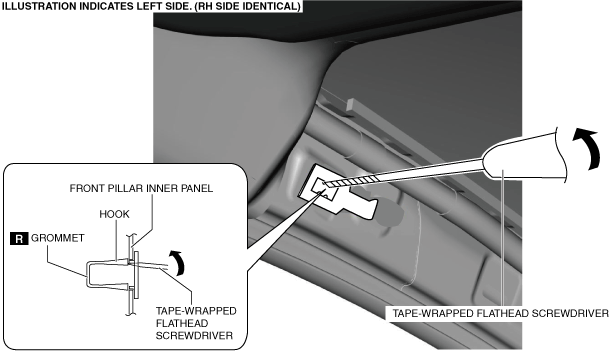

6. Move the hook in the direction of arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.
am3zzw00021827
|

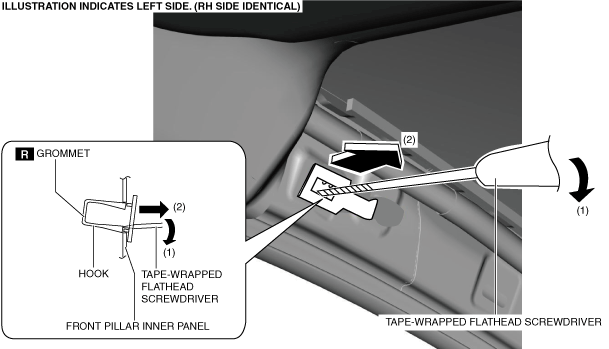

7. Remove the grommet in the direction of arrow (2) shown in the figure.
8. When installing the A-pillar trim, install new clip B and grommet to the A-pillar trim in advance.
9. Install in the reverse order of removal.
