B-PILLAR LOWER TRIM REMOVAL/INSTALLATION

id091700802000

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(4)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

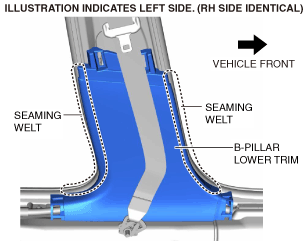

2.  Partially peel back the seaming welt.

ac30zw00000196

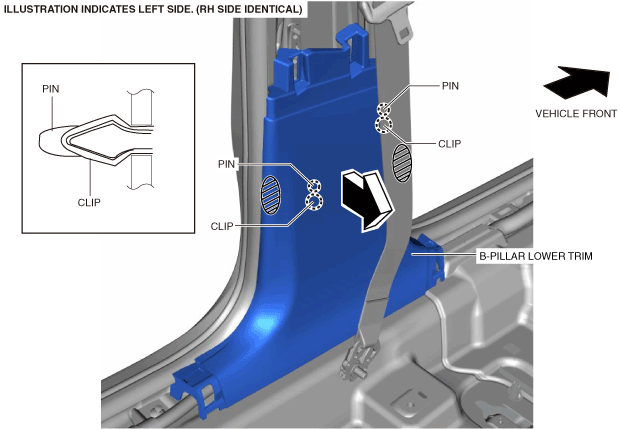

3.  Grasp the shaded areas shown in the figure, and pull the B-pillar lower trim in the direction of the arrow while detaching the clips and pins.

ac30zw00000197

4.  Install in the reverse order of removal.
