FRONT SIDE TRIM REMOVAL/INSTALLATION
id091700802400
1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

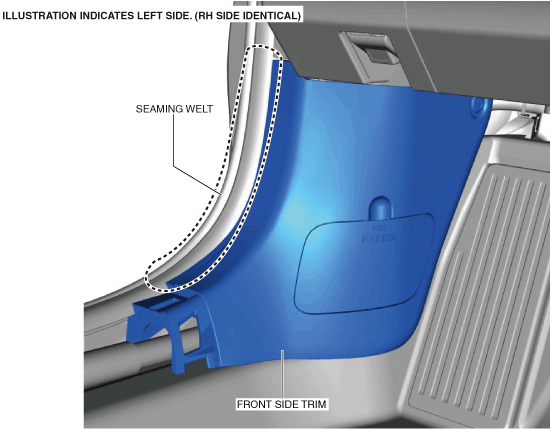

2. Partially peel back the seaming welt.
ac30zw00000200
|

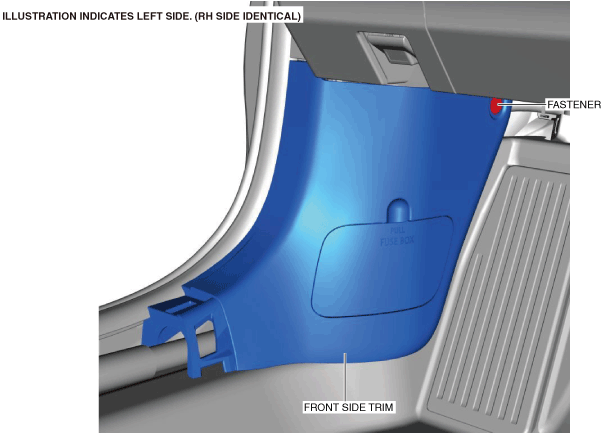

3. Remove the fastener.
ac30zw00000201
|

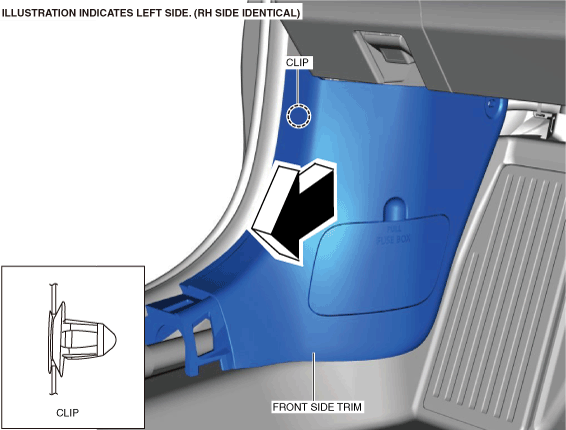

4. Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.
ac30zw00000202
|
5. Install in the reverse order of removal.
