FRONT CONSOLE BOX REMOVAL/INSTALLATION
id091700803900

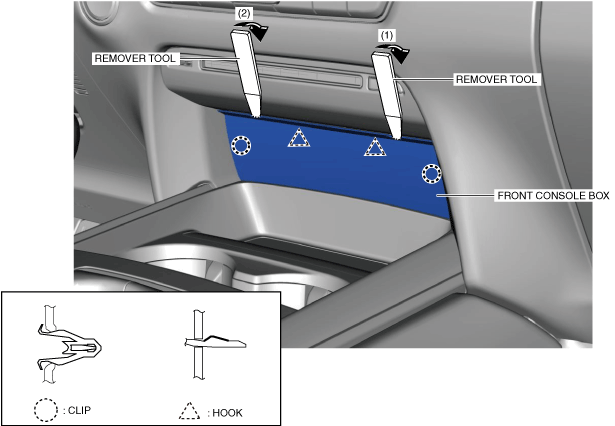

1. Insert the remover tool into the positions shown in the figure, move it in the order of arrows (1), (2) and detach the clips, hooks.
ac30zw00000275
|

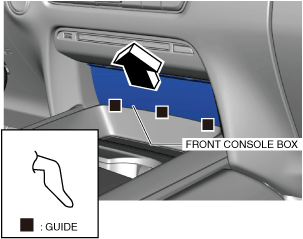

2. Remove the front console box in the direction of arrow shown in the figure while detaching the guides.
ac30zw00000276
|
3. Remove the front console box.
4. Install in the reverse order of removal.
