SIDE WALL REMOVAL/INSTALLATION

id091700805400

LH

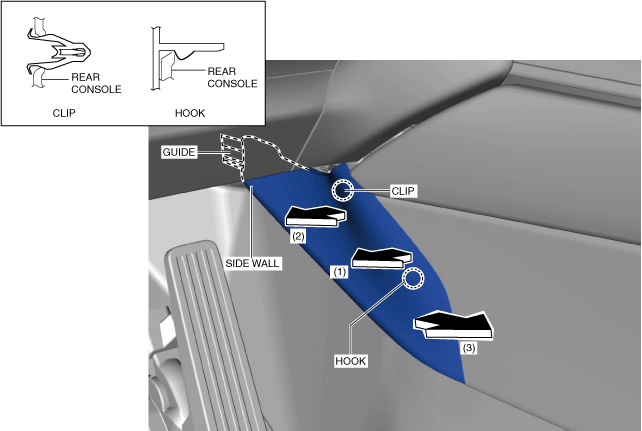

1.  Pull the side wall in the direction of the arrows in the order of (1), (2) and remove it while detaching the hook and clip.

Caution

•  If the hook and clip are removed forcefully, the guide may be damaged. Carefully remove the hook and clip so as not to damage the guide.

ac30zw00000286

2.  Pull the side wall in the direction of arrow (3) and remove it while detaching the guide.

3.  Install in the reverse order of removal.

RH

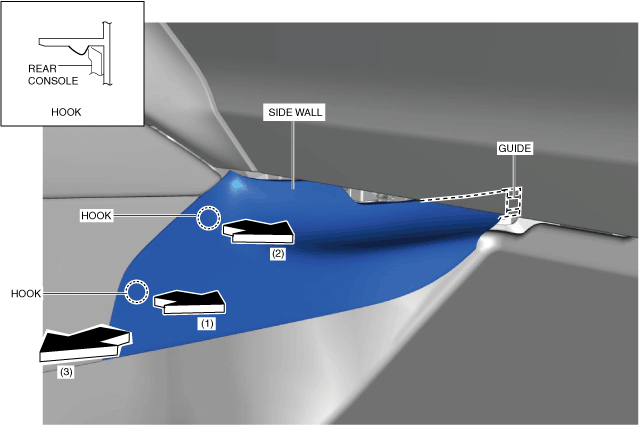

1.  Pull the side wall in the direction of the arrows in the order of (1), (2) and remove it while detaching the hooks.

Caution

•  If the hooks are removed forcefully, the guide may be damaged. Carefully remove the hooks so as not to damage the guide.

ac30zw00000287

2.  Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide.

3.  Install in the reverse order of removal.
