TRUNK BOARD REMOVAL/INSTALLATION [(E)]

id0917008100x2

With Temporary Spare Tire

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

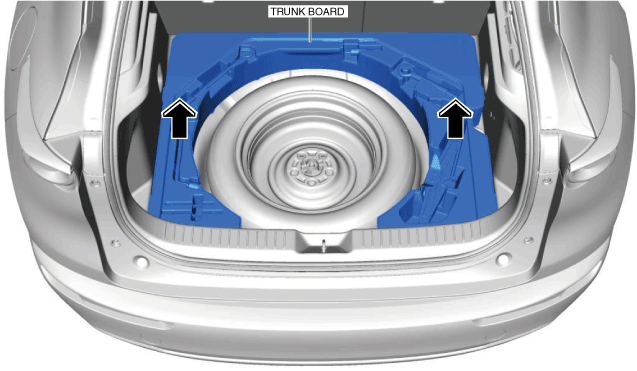

2.  Remove trunk board in the direction of the arrows shown in the figure.

ac30zw00003407

3.  Install in the reverse order of removal.

Without Temporary Spare Tire

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

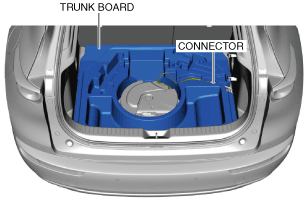

3.  Disconnect the connector. (with bass-box)

ac30zw00000303

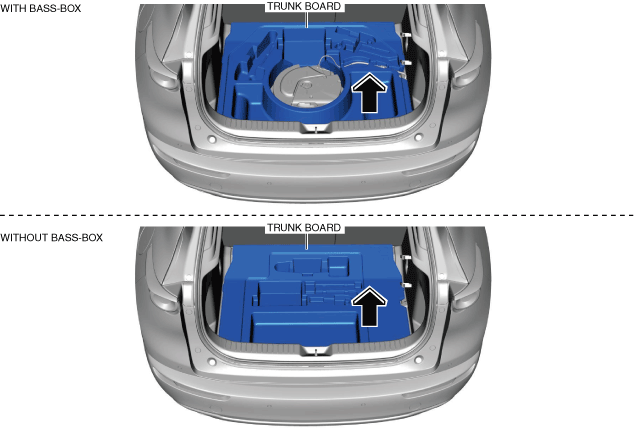

4.  Remove trunk board in the direction of the arrow shown in the figure.

ac30zw00000304

5.  Install in the reverse order of removal.
