UPPER PANEL REMOVAL/INSTALLATION

id091700898300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Open the console lid.

3.  Move the upper panel component in the direction of the arrow shown in the figure and detach the clips, hooks, and guides.

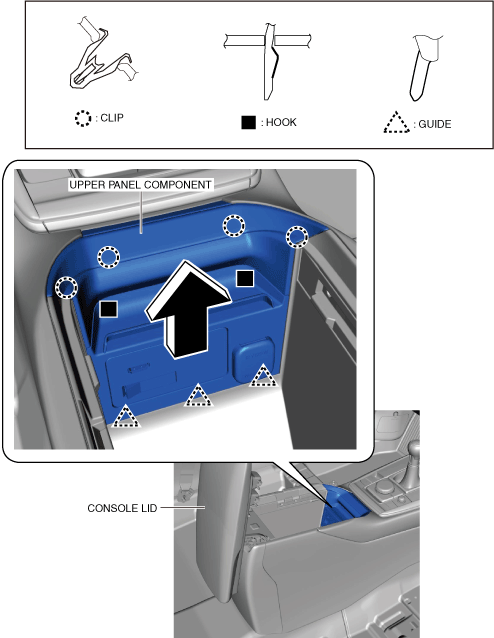

ac30zw00005333

4.  Insert a hand at the back of the upper panel and detach the clip at the position shown in the figure, and remove the upper panel from the console-up.

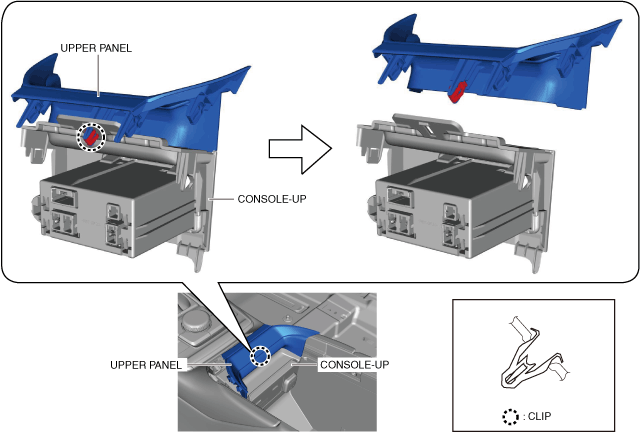

ac30zw00002926

5.  When removing the console-up, perform the following procedure:

(1)  Disconnect the connector.

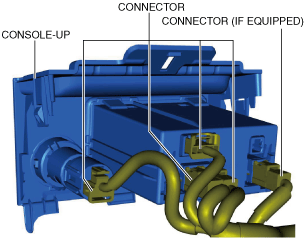

ac30zw00005196

(2)  Remove the console-up.

6.  Install in the reverse order of removal.
