GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION [(E)]

id0918008019x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Open the glove compartment.

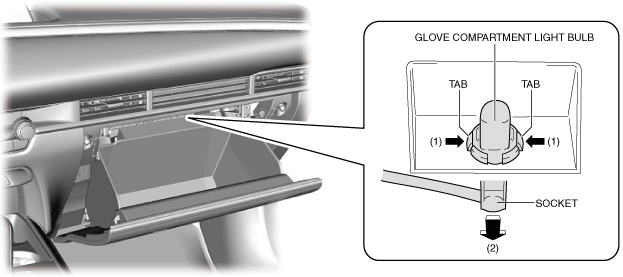

3.  While pressing the socket tabs in the direction of the arrows (1) shown in the figure, pull out the socket in the direction of the arrow (2) shown in the figure to remove the socket from the lower panel.

ac30zw00002311

4.  Remove the glove compartment light bulb.

am3zzw00028508

5.  Install in the reverse order of removal.
