HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)

(3)  Rear spoiler (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

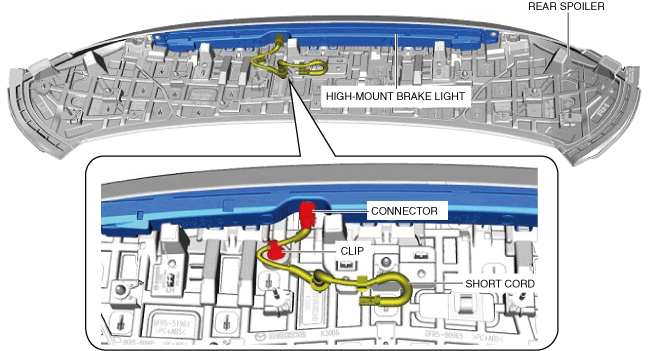

3.  Remove the clip.

ac30zw00002312

4.  Disconnect the connector.

5.  Remove the short cord.

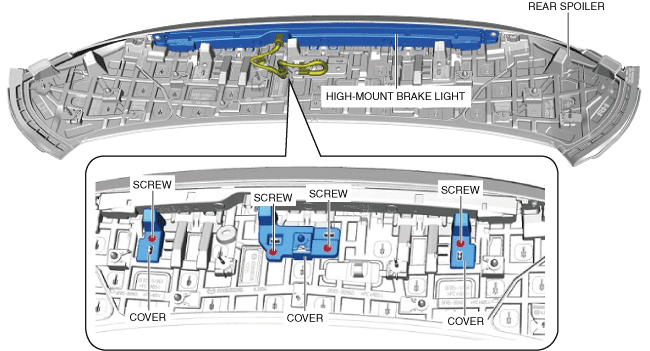

6.  Remove the screws.

ac30zw00002313

7.  Remove the covers.

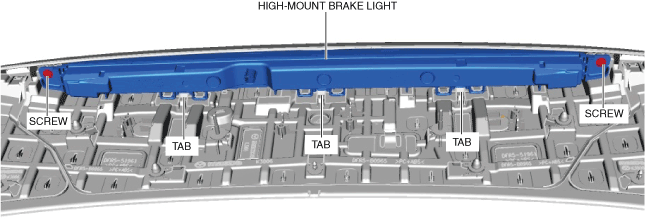

8.  Remove the screws.

ac30zw00002314

9.  Remove the high-mount brake light while detaching the tab.

10.  Install in the reverse order of removal.
