REAR FOG LIGHT REMOVAL/INSTALLATION

id091800805100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the rear bumper stay. (See REAR BUMPER STAY REMOVAL/INSTALLATION.)

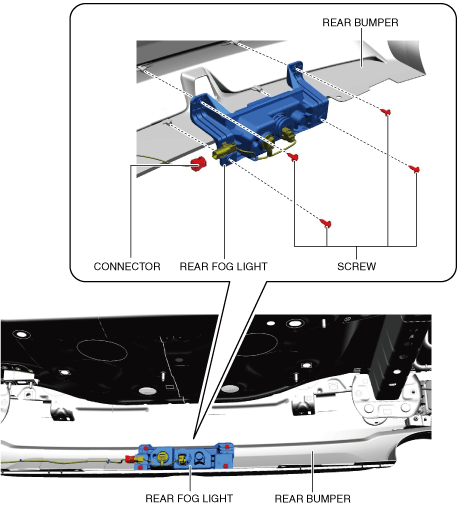

3.  Disconnect the connector.

ac30zw00004161

4.  Remove the screws. (See Screw Installation Note.)

5.  Remove the rear fog light.

6.  Install in the reverse order of removal.

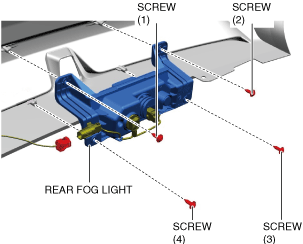

Screw Installation Note

1.  Install the screws in the order of (1), (2), (3) and (4).

ac30zw00004162
