FRONT CENTER SPEAKER REMOVAL/INSTALLATION
id092000866600
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
3. Move the front center speaker in the direction of the arrow shown in the figure while detaching the clips.
ac30zw00000400
|
4. Disconnect the connector.
ac30zw00000401
|

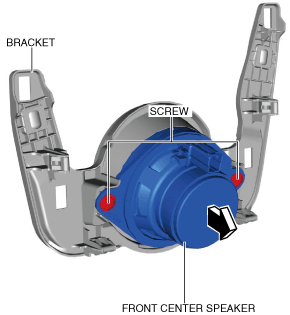

5. Remove the screws.
ac30zw00000402
|
6. Remove the front center speaker in the direction of the arrow shown in the figure.
7. Install in the reverse order of removal.
