BACKUP POWER SUPPLY INSPECTION

id092100909200

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the backup power supply.(See BACKUP POWER SUPPLY REMOVAL/INSTALLATION [(E)].)

3.  Connect the backup power supply connector.

4.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

5.  Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

•  If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

―  If the system does not operate normally even though the inspection items are normal, replace the backup power supply.(See BACKUP POWER SUPPLY REMOVAL/INSTALLATION [(E)].)

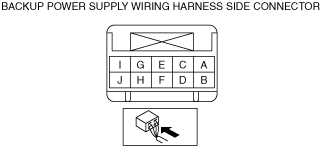

Terminal Voltage Table (Reference)

am3zzw00031185

Terminal	Signal name	Connected to	Test condition		Voltage (V)	Inspection item
A	Power supply	Electrical supply unit (ESU)	Under any condition		B+	•  Electrical supply unit (ESU) •  Related wiring harness
B	Power supply	Electrical supply unit (ESU)	Under any condition		B+	•  Electrical supply unit (ESU) •  Related wiring harness
C	Power supply (IG1)	F48 7.5A fuse	Ignition switched ON (engine off or on)		B+	•  F48 7.5A fuse •  Related wiring harness
			Ignition switched OFF (LOCK)		1.0 or less
D	—	—	—		—	—
E	—	—	—		—	—
F	—	—	—		—	—
G	—	—	—		—	—
H	—	—	—		—	—
I	GND	Body ground	Under any condition		Approx. 0	•  GND point •  Related wiring harness
J	Power supply	Electrical supply unit (ESU)	Under any condition		B+	•  Electrical supply unit (ESU) •  Related wiring harness
