ERROR IS DISPLAYED ON VEHICLE IDENTIFICATION [BETWEEN VEHICLE AND VCM-2] SCREEN [(E)]

id1002x2005300

Caution

•  Perform the following malfunction diagnosis only when vehicle identification [between vehicle and VCM-2] is not passed according to the [TROUBLESHOOTING PROCEDURE]. (See TROUBLESHOOTING PROCEDURE [(E)].)

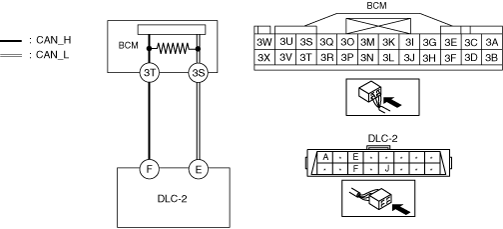

System Wiring Diagram

ac30zw00003960

Determination Procedure

Caution

•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

•  When inspecting the DLC-2, touch it with a paper clip or similar thin pin without directly inserting a tester into the terminals.

•  Disconnect the negative battery terminal before performing any work that requires handling of connectors.

Step	Inspection		Action
1	INSPECT DLC-2 GROUND CIRCUIT •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) •  Inspect for continuity between DLC-2 terminal J and body ground. •  Is there continuity?	Yes	Go to the next step.
		No	A malfunction has occurred between DLC-2 and body ground. •  Repair or replace the malfunctioning location.
2	Measure the voltage at DLC-2. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminal A. •  Is the voltage B+?	Yes	Go to the next step.
		No	A malfunction has occurred between DLC-2 and battery. •  Inspect the following fuse or wiring harness. ―  F26 7.5 A fuse ―  Wiring harness between DLC-2 terminal A and F26 7.5 A fuse •  Repair or replace the malfunctioning location.
3	INSPECT CAN LINE BETWEEN DLC-2 AND BODY CONTROL MODULE (BCM) FOR SHORT TO POWER SUPPLY •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage between 1.5—3.5 V?	Yes	Go to Step 5.
		No	Go to the next step.
4	INSPECT BODY CONTROL MODULE (BCM) FOR SHORT TO POWER SUPPLY •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) •  Disconnect the connector 3 which has body control module (BCM) terminals 3T and 3S. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage between 0 V?	Yes	Replace the body control module (BCM) because there is a short to the power supply in the body control module (BCM). (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
		No	Repair or replace the wiring harness between the body control module (BCM) and DLC-2 because the wiring harness is shorted to the power supply.
5	INSPECT CAN LINE BETWEEN DLC-2 AND BODY CONTROL MODULE (BCM) FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) •  Disconnect the connector 3 which has body control module (BCM) terminals 3T and 3S. •  Inspect for continuity between DLC-2 terminals F and E. •  Is there continuity?	Yes	Repair or replace the wiring harness between the DLC-2 and body control module (BCM) because the wiring harness is shorted between circuits.
		No	Go to the next step.
6	INSPECT BODY CONTROL MODULE (BCM) FOR SHORT BETWEEN CIRCUITS •  Connect the connector 3 which has body control module (BCM) terminals 3T and 3S. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Replace the body control module (BCM) because there is a short to the power supply in the body control module (BCM). (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
		No	Go to the next step.
7	INSPECT FOR SHORT TO GROUND BETWEEN DLC-2 AND BODY CONTROL MODULE (BCM) •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)]) •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminals F and body ground ―  Between DLC-2 terminals E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 9.
8	INSPECT CAN LINE IN BODY CONTROL MODULE (BCM) FOR SHORT TO GROUND •  Disconnect the connector 3 which has body control module (BCM) terminals 3T and 3S. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminals F and body ground ―  Between DLC-2 terminals E and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the DLC-2 and body control module (BCM) because the wiring harness is shorted to ground.
		No	Replace the body control module (BCM) because there is a short to the power supply in the body control module (BCM). (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
9	VERIFY IF MALFUNCTION CAUSE IS OPEN CIRCUIT IN WIRING HARNESS BETWEEN DLC-2 AND BODY CONTROL MODULE (BCM) •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body control module (BCM) terminals 3T ―  Between DLC-2 terminal E and body control module (BCM) terminals 3S •  Is there continuity?	Yes	Because the circuit between the vehicle and VCM-2 is currently normal, go back to the [TROUBLESHOOTING PROCEDURE].
		No	•  Any of the following malfunctions may have occurred. ―  Repair or replace the wiring harness because there is an open circuit in the wiring harness between DLC-2 terminal F and body control module (BCM) terminal 3T. ―  Repair or replace the wiring harness because there is an open circuit in the wiring harness between DLC-2 terminal E and body control module (BCM) terminal 3S. ―  Replace the body control module (BCM) because there is a short to the power supply in the body control module (BCM). (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
