FORWARD SENSING CAMERA (FSC) AIMING

id152000002300

Special service tool (SST)

49 L067 003   Plumb bob

49 L067 006   Plumb bob

Note

•  The forward sensing camera (FSC) stores the camera shot angle in the FSC using either of the following aiming methods.

―  Dynamic aiming: Switch to aiming mode and drive vehicle for specified period of time

―  Static aiming: Have FSC read target for aiming

•  If an obstruction on the windshield or camera lens is blocking the scene in front of the vehicle, aiming will not be performed correctly. Perform the following procedure before performing the aiming.

―  Verify that there is no water, mud, dirt, or sticker adhesion on the windshield, and that there is nothing on the camera lens such as dust or dirt.

•  Perform the FSC aiming if any of the following procedure is performed.

―  FSC replacement

―  Windshield replacement

Dynamic Aiming

Caution

•  There is a risk that DTC B14F0:76 may not be cleared and then the FSC may require replacement. Therefore, when performing the dynamic aiming, do not switch the ignition OFF until the following conditions are met.

―  Dynamic aiming is completed

―  Dynamic aiming timeout period has expired

•  Perform the dynamic aiming with the sensor covers installed to the sensors. Otherwise, the dynamic aiming may not be completed normally due to the affects of noise.

Note

•  In order to perform mid-drive aiming, it is necessary to drive on a road that meets the following conditions for 5 to 10 min. However, it does not need to be a continuous period of 5 to 10 min

―  Drive the vehicle at a vehicle speed of 40 km/h {25 mph} or more

―  Drive the vehicle on a straight road (road with a turning radius of 300 m {984 ft 3 in} or more)

―  Drive the vehicle on a road with lane markers and structures (buildings and signs)

―  Drive the vehicle on a road with a level surface (not rough or inclined roads)

•  Mid-drive aiming may not complete in an environment where any of the following conditions continues.

―  Inclement weather caused by snow, rain, or fog

―  Windshield washer is being used or wipers are not used during rain

―  Smoke from vehicle exhaust, steam rising from manholes or gratings, and sand, snow, and water spray are dispersed into the air

―  Vehicle is driven with significantly worn tires

―  Vehicle is driven downhill or on extremely rough or uneven roads

―  Area is dark such as at nighttime or evening, early morning, and in a tunnel or indoor parking

―  Headlight lens is dirty or its optical axis is deviated, or the headlights are not bright enough

―  Vehicle is subjected to strong light (driving towards the sun or high-beams) from the vehicle front

―  Vehicle is driven with tire chains or a spare tire equipped

•  If mid-drive aiming cannot be performed or mid-drive aiming fails, perform static aiming.

1.  Empty the vehicle by removing all the cargo except for the spare tire, jack and tools equipped on the vehicle.

2.  Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION [(E)].)

3.  Move the vehicle to level ground.

4.  Connect the M-MDS to the DLC-2.

5.  Switch the ignition ON (engine off).

6.  Activate the M-MDS and perform the following procedure.

(1)  Press [Start] to start the vehicle identification.

(2)  Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B14F0:04 and B14F0:76 are displayed. (See DTC INSPECTION.)

Note

•  Because DTC B14F0:04 and B14F0:76 are output if aiming is not performed, continue to perform the FSC aiming only if DTC B14F0:04 and B14F0:76 are output.

(3)  Press the [Toolbox] tab.

(4)  Press the [Work Support] icon.

(5)  Press [i-ACTIVSENSE].

(6)  Press [Dynamic aiming].

(7)  Press [Run] for [Dynamic aiming for FSC].

(8)  Confirm the Dynamic aiming for FSC procedure from Step (9) to Step 8 and press [Next].

(9)  Verify that the ignition is switched ON (engine off) and press [Next].

(10)  When the M-MDS processing is completed, press [Next].

7.  When [The vehicle has moved to the dynamical test mode] is displayed, drive the vehicle on the road.

Note

•  When the vehicle enters mid-drive aiming mode, the i-ACTIVSENSE warning light comes on.

a30zzw00003797

•  When the vehicle enters mid-drive aiming mode, the message [Forward Sensing Camera Calibration Mode] is displayed on the multi-information display.

•  During mid-drive aiming, M-MDS may be connected or disconnected.

•  The timeout period for the dynamic aiming for FSC expires in approx. 20 min.

8.  Verify the following within 20 min after the aiming is started and verify that the aiming is completed.

•  i-ACTIVSENSE warning light turns off

•  Message [Forward Sensing Camera Calibration Mode] on multi-information display is no longer displayed

Note

•  When completing the mid-drive aiming, [i-ACTIVSENSE Temporarily Disabled] may be displayed for 5 s on the multi-information display while the FSC system restores, but the mid-drive aiming is completed.

Static Aiming

1.  Empty the vehicle by removing all the cargo except for the spare tire, jack and tools equipped on the vehicle.

2.  Adjust the air pressure of each tire to the specified value.

3.  Move the vehicle to level ground.

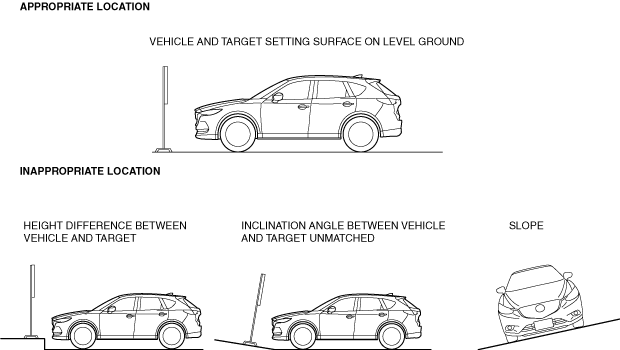

Caution

•  If the setting surface height and angle between the vehicle and the target differs, correct FSC aiming cannot be done. Perform the FSC aiming with the vehicle and target setting surface on level ground.

a30zzw00003798

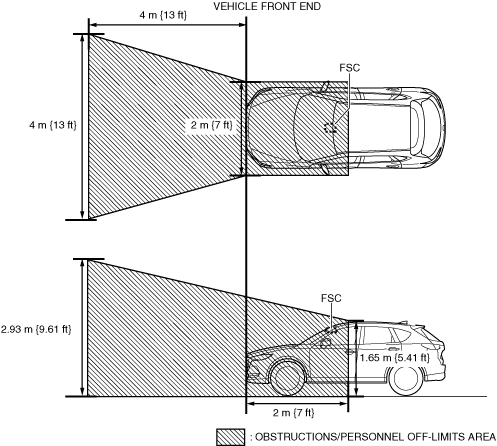

4.  Verify that there are no obstructions such as metal objects in the shaded areas shown in the figure.

Caution

•  If the FSC aiming is performed with obstructions such as white and black patterned objects or reflective metal in the shaded areas, the FSC will determine such obstructions as targets and the FSC aiming procedure will not be performed correctly. Move all obstructions away from the shaded areas, and when performing the aiming, do not have personnel standing in the shaded areas.

a30zzw00003799

Note

•  Because DTC B14F0:04 and B14F0:76 are output if aiming is not performed, continue to perform the FSC aiming only if DTC B14F0:04 and B14F0:76 are output.

5.  Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B14F0:04 and B14F0:76 are displayed. (See DTC INSPECTION.)

Note

•  The center of the brand emblem indicates the center position of the vehicle.

•  Use a commercially-available leveling line.

6.  Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.

a30zzw00003800

7.  Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.

a30zzw00003801

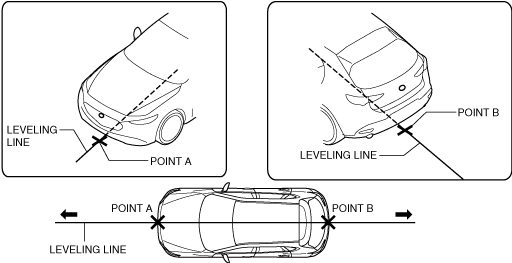

8.  Secure the end of the leveling line over point B.

9.  Pull the leveling line towards the front and rear of the vehicle and adjust it so that it passes over points A and B.

a30zzw00003802

10.  Secure the leveling line.

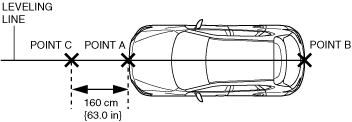

11.  Mark the line (position A) at the point 160 cm {63.0 in} from point A and in the direction forward of the vehicle.

a30zzw00003803

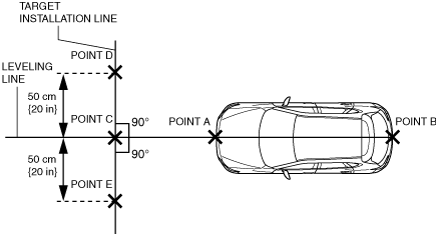

12.  Mark the points (points D and E) 50 cm {20 in} from point C on the line which runs perpendicular to the vehicle center line.

a30zzw00003804

13.  Draw a line connecting points D, C, and E (target setting line).

14.  Print out 6 sheets of each of the following target papers without using scaling.

Note

•  If the target sheets cannot be printed, follow the dimensions shown in Step 16 to make target sheets.

a30zzw00003805

aaxjjw00023545

Caution

•  When attaching the target, if tape is applied to the front of the target it could reflect light and adversely affect the aiming accuracy. When taping the two target sheets together, apply the cellophane tape to the back of the target pattern.

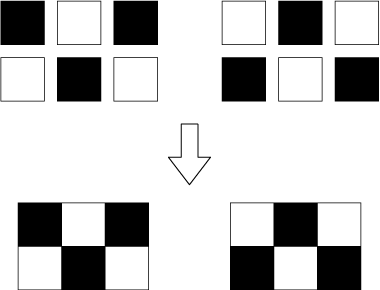

15.  Cut the printed target sheets and line up the two sheets as shown in the figure, and then apply cellophane tape to the back of the target.

a30zzw00003806

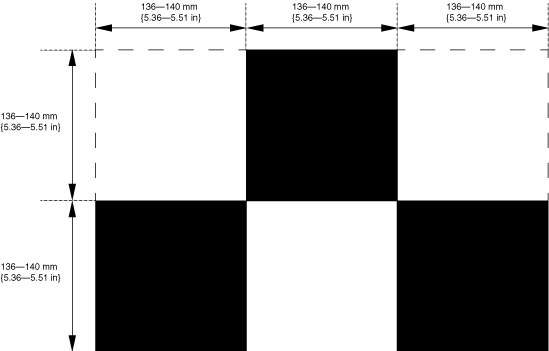

16.  Verify that the taped-together target is of the dimensions shown in the figure.

a30zzw00003807

Caution

•  When attaching the target, if tape is applied to the front of the target it could reflect light and adversely affect the aiming accuracy. When attaching the target, apply the double-sided adhesive tape to the back of the target and attach it to the board.

17.  Apply double-sided adhesive tape to the back of the target.

Note

•  Use a wooden board which does not reflect light to attach the target.

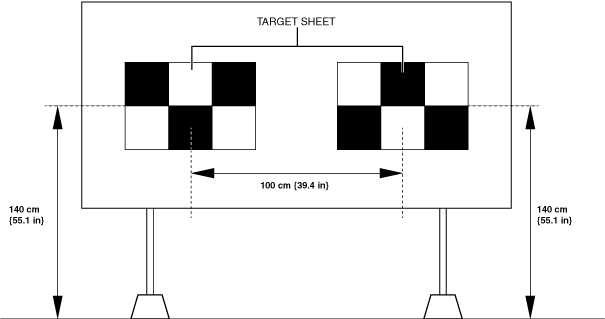

18.  Align the target sheets to the height shown in the figure, and apply them to a board.

a30zzw00003808

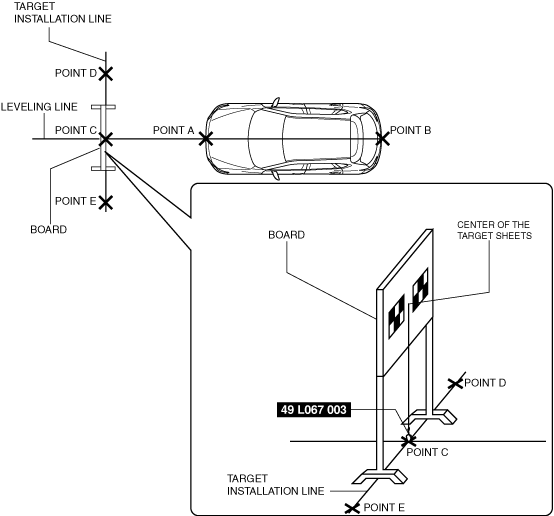

19.  Align the center of the target with point C using the SST.

a30zzw00003809

20.  Align so that the board and the target setting line are level with the center of point C.

21.  Connect the M-MDS to the DLC-2.

22.  Switch the ignition ON (engine off).

23.  Activate the M-MDS and perform the following procedure.

(1)  Press [Start] to start the vehicle identification.

(2)  Press the [Toolbox] tab.

(3)  Press the [Work Support] icon.

(4)  Press [i-ACTIVSENSE].

(5)  Press [Static aiming].

(6)  Press [Run] for [Static aiming for FSC].

(7)  Confirm the Static aiming for FSC procedure from Step (8) to Step (9) and press [Next].

(8)  Input the following value and press [Next].

Item	Numerical value (mm)
Distance from target to front wheel center	0

(9)  Verify the M-MDS display.

•  If [Procedure successful] is displayed

―  FSC aiming is completed

•  If [Procedure unsuccessful] is displayed

―  If the forward sensing camera (FSC) was replaced, the vehicle data learning by the forward sensing camera (FSC) may not have been completed. Switch the ignition OFF and allow the forward sensing camera (FSC) to complete the vehicle data learning.

―  Perform an inspection according to the following table for the error code procedure.

―  If an error code other than the error codes in the following table is displayed, verify the following and perform the FSC aiming again if there is no malfunction, as there could be a communication error between the FSC and the diagnostic tester.

•  Is the battery positive voltage for the vehicle 8 V or more?

•  Is the ignition switched ON (engine off or on)?

Error code	Detection condition
01	Target set position or input value is incorrect
02	Visibility where aiming is performed is bright or dark, target is dirty
03	Target is not detected
04	Target moves during aiming
05	Input vehicle value exceeds specification
06	Configuration is not completed
08	Aiming is not performed
FF	Aiming cannot be performed due to communication error

Error code 01/05

Error code 02/03/04

Error code 06/08

Error code FF
