CRUISE CONTROL SWITCH INSPECTION [(E)]

id1520000052x2

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)])

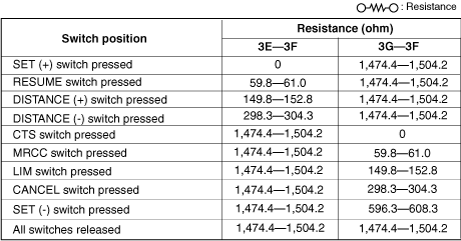

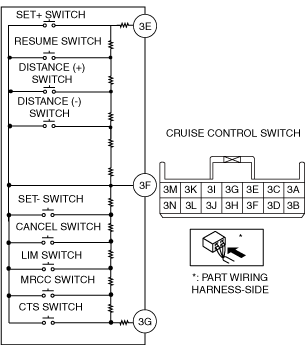

3.  Measure the resistance between cruise control switchs 3E, 3F and 3G under the following condetion :

am3zzw00031266

•  If not within the specification, replace the cruise control switch. (See CRUISE CONTROL SWITCH REMOVAL/INSTALLATION.)

am3zzw00031267

4.  Apply battery positive voltage to cruise control switch terminal 3N and connect terminal 3B to ground.

am3zzw00027441

5.  Verify that the LED illuminatates.

•  If the LED does not illuminate, replace the cruise control switch. (See CRUISE CONTROL SWITCH REMOVAL/INSTALLATION.)
