SIDE CAMERA REMOVAL/INSTALLATION

id152000009800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

(2)  Outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(3)  Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

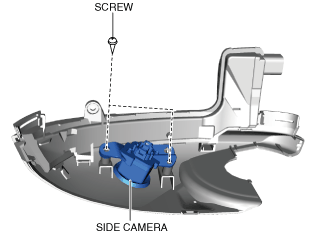

3.  Remove the screws.

ac30zw00000734

4.  Remove the side camera.

5.  Install in the reverse order of removal.

6.  Perform side camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
