OBD DRIVE MODE [L8, LF, L3]
OBD DRIVE MODE [L8, LF, L3]
id0102a1815800
• Performing the Drive Mode inspects the OBD system for proper operation. The Drive Mode must be performed to ensure that no additional DTCs are present.
• During Drive Mode, the following systems are inspected:
-
- A/F sensor
-
- HO2S
-
- A/F sensor heater
-
- HO2S heater
-
- TWC
-
Caution
-
• While performing the Drive Mode, always operate the vehicle in a safe and lawful manner.
-
• When the WDS or equivalent is used to observe or monitor system conditions while driving, be sure to have another technician with you, or record the data in the WDS or equivalent using the PID/DATA MONITOR AND RECORD function and inspect later.
-
Note
-
• Vehicle speed and engine speed detected by the PCM may differ from that indicated by the speedometer and tachometer. Use the WDS or equivalent to monitor vehicle speed.
-
• If the OBD system inspection is not completed during the Drive Mode, the following causes are considered:
-
1. The OBD system detects the malfunction.
-
2. The Drive Mode procedure is not completed correctly.
-
• Disconnecting the battery will reset the memory. Do not disconnect the battery during and after Drive Mode.
-
• The WDS or equivalent can be used at anytime through the course of Drive Mode to monitor the completion condition. Monitoring can be done by viewing the ON-BOARD SYSTEM READINESS menu.
PCM Adaptive Memory Procedure Drive Mode
-
Note
-
• The PCM adaptive memory condition can be confirmed with RFCFLAG PID.
-
• If the RFCFLAG PID is ON, the PCM adaptive memory procedure drive mode is not necessary, because the PCM already has adaptive memory.
-
• If the RFCFLAG PID is OFF, the PCM adaptive memory procedure drive should be performed before A/F sensor heater, HO2S heater, A/F sensor, HO2S and TWC repair verification drive mode.
1. Start the engine and warm it up completely.
2. Verify all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

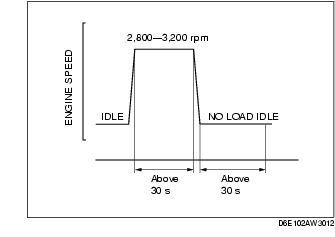

3. Perform no load racing at the engine speed shown in the graph, then idle the engine for more than 30 s after the cooling fan is stopped. If possible, monitor RPM PID for engine speed and FAN1 PID for cooling fan conditions during this procedure.
4. Turn ignition switch off then to the ON position again.
5. Access the RFCFLAG PID to confirm the PCM adaptive memory conditions. If the RFCFLAG PID is ON, the PCM adaptive memory procedure drive is completed.
6. If the RFCFLAG PID is still OFF, go back to Step 1.
A/F Sensor Heater, HO2S Heater, A/F Sensor, HO2S and TWC Repair Verification Drive Mode
1. Access the RFCFLAG PID to confirm PCM adaptive memory condition. If RFCFLAG PID is OFF, perform the PCM adaptive memory procedure drive first.
2. If RFCFLAG PID is ON, start the engine and warm it up completely.
3. Verify all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

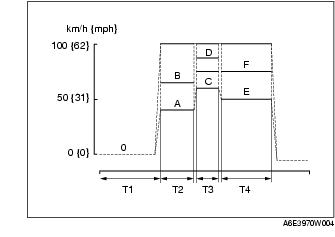

4. Drive the vehicle as shown in the graph; first drive in zone 0, then A or B, followed by C or D, finally E or F. Driving conditions before constant speed driving are not specified.
For L8 MTX model
|
Zone
|
Shift Position
|
Vehicle Speed
km/h {mph}
|
Time
(S)
|
|
0
|
Neutral
|
0
|
T1: Above 455
|
|
A
|
2nd
|
40-50 {25-32}
|
T2: Above 30
|
|
B
|
3rd
|
65-75 {41-47}
|
|
C
|
2nd
|
60-75 {38-46}
|
T3: Above 20
|
|
D
|
3rd
|
75-100 {47-62}
|
|
E
|
4th
|
50-75 {31-46}
|
T4: Above 120
|
|
F
|
5th
|
75-100 {47-62}
|

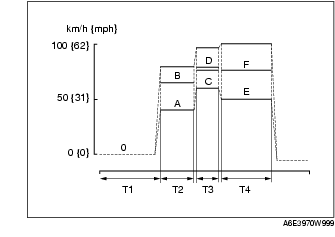

For LF, L3 MTX model
|
Zone
|
Shift Position
|
Vehicle Speed
km/h {mph}
|
Time
(S)
|
|
0
|
Neutral
|
0
|
T1: Above 455
|
|
A
|
4th
|
50-70 {32-43}
|
T2: Above 30
|
|
B
|
5th
|
70-90 {44-55}
|
|
C
|
2nd
|
60-70 {38-43}
|
T3: Above 20
|
|
D
|
3rd
|
70-100 {44-62}
|
|
E
|
4th
|
50-70 {32-43}
|
T4: Above 120
|
|
F
|
5th
|
60-90 {38-55}
|
|
G
|
6th
|
70-100 {44-62}
|

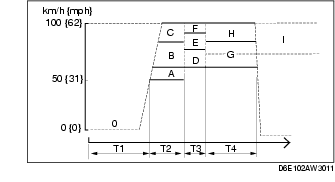

For LF ATX model
|
Zone
|
Shift Position
|
Vehicle Speed
km/h {mph}
|
Time
(S)
|
|
0
|
N
|
0
|
T1: Above 455
|
|
A
|
M (3rd)
|
50-60 {32-37}
|
T2: Above 30
|
|
B
|
M (4rd)
|
60-80 {38-37}
|
|
C
|
M (5nd)
|
80-100 {50-62}
|
|
D
|
M (2rd)
|
60-75 {38-46}
|
T3: Above 20
|
|
E
|
M (3th)
|
75-90 {47-55}
|
|
F
|
M (4th)
|
90-100 {56-62}
|
|
G
|
M (4rd)
|
60-80 {38-49}
|
T4: Above 120
|
|
H
|
M (5rd)
|
80-100 {50-62}
|
|
I
|
D
|
70-100 {44-62}
|

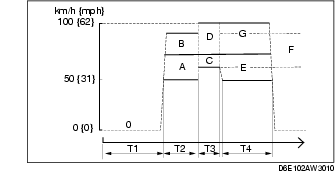

For L3 (4WD) ATX model
|
Zone
|
Range
|
Vehicle Speed
km/h {mph}
|
Time
(S)
|
|
0
|
P or N
|
0
|
T1: Above 455
|
|
A
|
M (3rd)
|
40-65 {25-41}
|
T2: Above 30
|
|
B
|
M (3rd)
|
65-80 {41-49}
|
|
C
|
M (2nd)
|
60-75 {38-46}
|
T3: Above 20
|
|
D
|
M (3rd)
|
85-95 {52-59}
|
|
E
|
M (4th)
|
50-75 {31-47}
|
T4: Above 120
|
|
F
|
M (5th)
|
75-100 {46-62}
|
5. Stop vehicle and access the ON BOARD SYSTEM READINESS menu of the GENERIC OBD FUNCTION to inspect the drive mode completion condition. If completed, the RFC changes from NO to YES.
6. If not completed, turn the ignition switch off, then go back to Step 4.
7. Access the DIAGNOSTIC MONITORING TEST RESULTS menu of the GENERIC OBD FUNCTIONS to inspect the monitor results. If the MEAS are not within the specification, the repair has not completed.
8. Verify that no DTC is present.
