ON-BOARD DIAGNOSTIC TEST [MZR-CD (RF Turbo)]

DTCs Retrieving Procedure

1. Perform the necessary vehicle preparation and visual inspection.

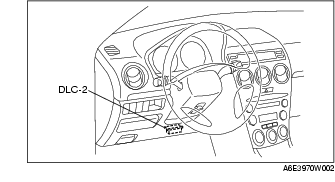

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector.

3. Retrieve DTC using the WDS or equivalent.

PID/DATA Monitor and Record Procedure

1. Perform the necessary vehicle preparation and visual inspection.

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector.

3. Access and monitor PIDs using the WDS or equivalent.
