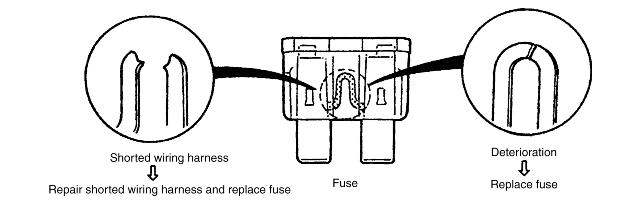

Damaged fuse
|
Related wiring harness
|
|
MAIN
|
MAIN fuse
• BTN fuse
-
- ROOM fuse
• IG KEY2 fuse
• FAN fuse
• AD FAN fuse
|
|
BTN
|
BTN fuse
• ROOM fuse
|
|
ROOM
|
ROOM fuse
• DLC-2
|
|
IG KEY2
|
IG KEY2 fuse
• Ignition switch
|
|
FAN
|
FAN fuse
• Cooling fan relay No.2
|
|
AD FAN
|
AD FAN fuse
• Cooling fan relay No.1
|
|
IG KEY1
|
IG KEY1 fuse
• Ignition switch
-
- ENGINE fuse
|
|
ENGINE
|
ENGINE fuse
• Fuel pump relay
• PCM
• Ignition coil
• Condenser
|
|
FUEL PUMP
|
FUEL PUMP fuse
• Main relay
-
- PCM
• Fuel pump relay
-
- Fuel pump
|
|
ENG +B
|
ENG +B fuse
• PCM
|
|
ETC
|
ETC fuse
• ET control relay
-
- PCM
|
|
INJ
|
INJ fuse
• ET control relay
-
- PCM
• PCM
• Fuel injector
|
|
ENG BAR
|
ENG BAR fuse
• EGR valve
• Purge solenoid valve
• MAF/IAT sensor
• Oil control valve (LF, L3)
• Variable intake-air solenoid valve (LF, L3)
• A/F sensor
|
