ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]
ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]
id0113f1807300

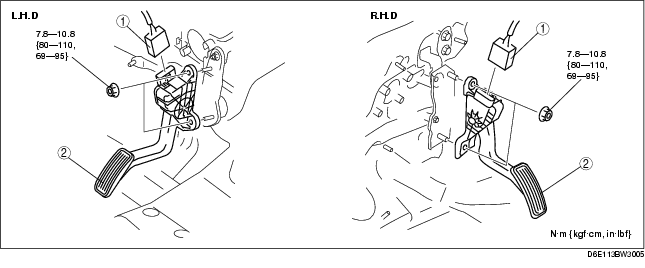

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
|
1
|
Accelerator pedal position (APP) sensor connector
|
|
2
|
Pedal component
|
3. Install in the reverse order of removal.
