VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [LF, L3]

1. Remove the air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L3].)

2. Disconnect the vacuum hose from the variable intake air shutter valve actuator.

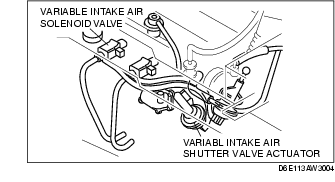

LF

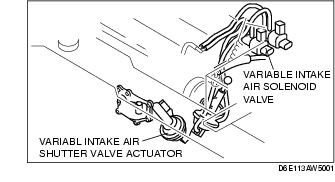

L3

3. Connect a vacuum pump to the variable intake air shutter valve actuator.

4. Apply vacuum and verify that the rod moves.

• If the rod dose not move, replace the intake manifold.
