INJECTOR DRIVER MODULE REMOVAL/INSTALLATION [L3 Turbo]
INJECTOR DRIVER MODULE REMOVAL/INSTALLATION [L3 Turbo]
id0140b6801700
1. Disconnect the negative battery cable.
2. Remove the battery and the battery tray.

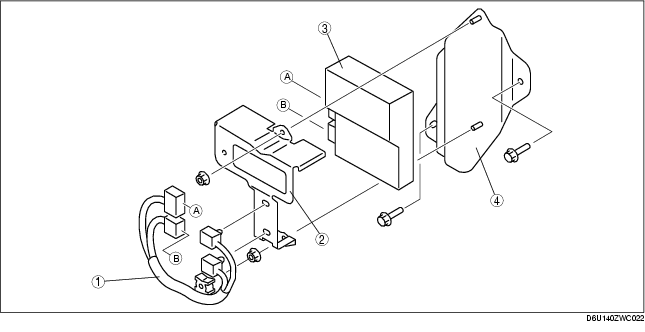

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
|
1
|
Wiring harness
|
|
2
|
Connector bracket
|
|
3
|
Injector driver module
|
|
4
|
Injector driver module bracket
|
