INJECTOR DRIVER MODULE INSPECTION [L3 Turbo]
INJECTOR DRIVER MODULE INSPECTION [L3 Turbo]
id0140b6801800
1. Inspect using the wave profile.
-
• If any incorrect voltage is detected, inspect the related system(s), wiring harnesses and connector(s).

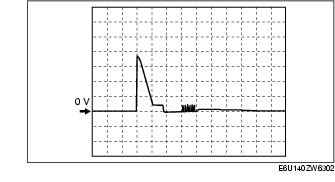

Fuel Injector Signal (+)

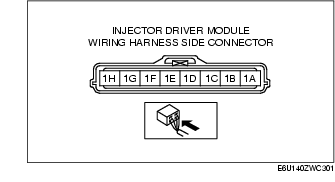

Injector driver module terminals
-
• Fuel injection No.1: 1F(+) - Body ground(-)
-
• Fuel injection No.2: 1A(+) - Body ground(-)
-
• Fuel injection No.3: 1A(+) - Body ground(-)
-
• Fuel injection No.4: 1F(+) - Body ground(-)
Oscilloscope setting
-
• 25 V/DIV (Y), 0.2 ms/DIV (X), DC range
Vehicle condition
-
• Idle after warm up (no load, P/S off, A/C off)

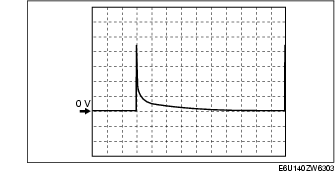

Fuel Injector Signal (-)
Injector driver module terminals
-
• Fuel injection No.1: 1E(+) - Body ground(-)
-
• Fuel injection No.2: 1B(+) - Body ground(-)
-
• Fuel injection No.3: 1C(+) - Body ground(-)
-
• Fuel injection No.4: 1D(+) - Body ground(-)
Oscilloscope setting
-
• 25 V/DIV (Y), 0.2 ms/DIV (X), DC range
Vehicle condition
-
• Idle after warm up (no load, P/S off, A/C off)
