CLUTCH SWITCH INSPECTION [MZR-CD (RF Turbo)]

Note

• Perform the following test only when directed.

Continuity Inspection

1. Disconnect the negative battery cable.

2. Remove the clutch switch (See CLUTCH PEDAL REMOVAL/INSTALLATION)

3. Inspect continuity between the clutch switch terminals using an ohmmeter.

• If the clutch switch is okay, but the CPP PID is out of specification, perform the "Circuit Open/Short Inspection"

• If not as specified, replace the clutch switch.

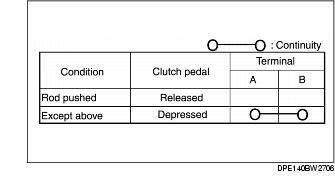

Specification

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)])

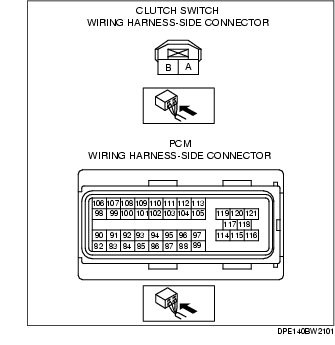

2. Inspect for open/short circuit in the following wiring harnesses.

• If there is open/short circuit, repair or replace wiring harnesses.

Open circuit

• Clutch switch terminal A and PCM terminal 109

• Clutch switch terminal B and body ground

Short circuit

• Clutch switch terminal A and power supply

• Clutch switch terminal A and body ground

• Clutch switch terminal B and power supply
