TRANSFER OIL INSPECTION [A26MX-R]

1. Park the vehicle on level ground.

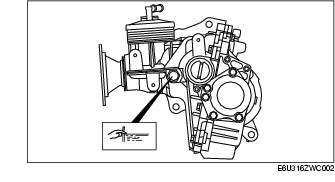

2. Remove the oil level plug and with the washer.

3. Verify that the oil is near the brim of the plug port.

• If the oil level is low, add the specified amount and type of oil through the oil level plug hole.

Specified oil grade: API Service GL-5

Specified oil viscosity: SAE 80W-90

4. Tighten the oil level plug with a new washer.

39.2-58.8 N·m {4.0-5.9 kgf·m, 29.0-43.3 ft·lbf}
