POWER STEERING OIL PUMP REMOVAL/INSTALLATION [L8, LF, L3, L3 Turbo]
POWER STEERING OIL PUMP REMOVAL/INSTALLATION [L8, LF, L3, L3 Turbo]
id0614008007a5
1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L8, LF, L3].) (See DRIVE BELT REPLACEMENT [L3 Turbo].)

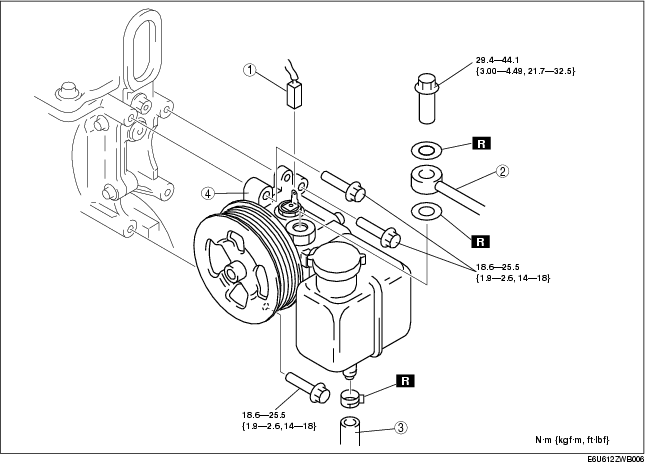

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
.
|
1
|
Pressure switch connector
|
|
2
|
Pressure pipe
|
|
3
|
Return hose
|
|
4
|
Power steering oil pump
|
