CLOCK SPRING INSPECTION
CLOCK SPRING INSPECTION
id081000802200

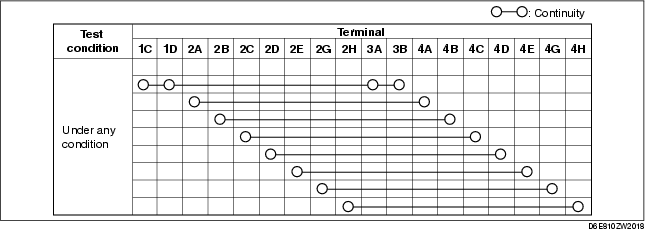

1. Verify that the continuity is as indicated in the table.
-
• If not as indicated in the table, replace the clock spring.
-
Note
-

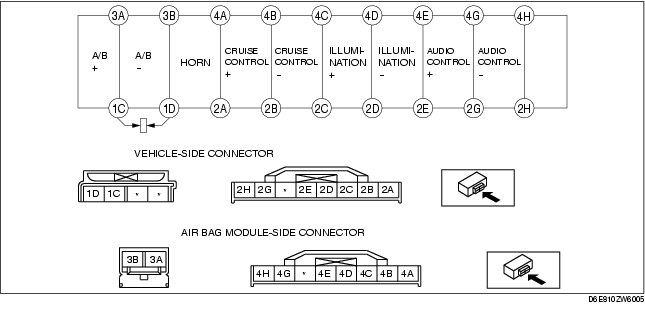

• When the vehicle-side connector for the clock spring is disconnected, terminals 1C, 1D are shorted to prevent unexpected operation (deployment) of the air bag module.
