CARD KEY BATTERY REPLACEMENT [WITH ADVANCED KEYLESS SYSTEM]

Card Key Type

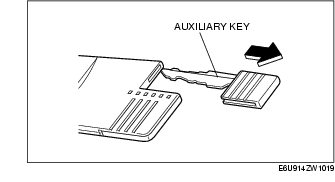

1. Pull out the auxiliary key.

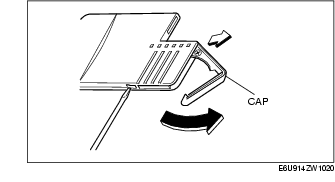

2. Replace the cap using a flathead screwdriver, then rotate and remove the cap.

Caution

• Do not turn the cap excessively. The cap may be damaged.

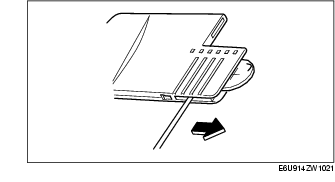

3. Insert a flathead screwdriver into the crack and press the battery out.

4. Insert the new battery (CR2025) with the positive pole (+) facing the (+) mark on the cap.

Lithium CR2025 × 1

Note

• The batteries will last about 1 years when used 10 times a day.

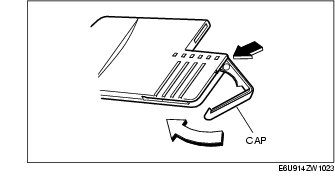

5. Rotate and close the cap.

6. Reinsert the auxiliary key.
