 INTRUDER SENSOR REMOVAL/INSTALLATION [4SD, 5HB]

INTRUDER SENSOR REMOVAL/INSTALLATION [4SD, 5HB]


id0914z68094a5

1. Disconnect the negative battery cable.

2. Remove the headliner.

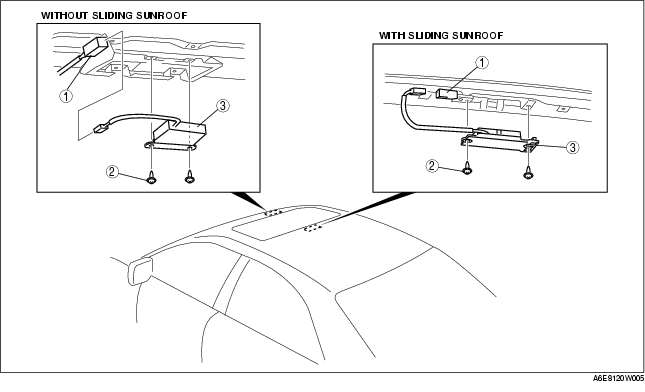

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

.

1
Connector
2
Screw
3
Intruder sensor
