 LOWER PANEL REMOVAL/INSTALLATION

LOWER PANEL REMOVAL/INSTALLATION


id091700453900

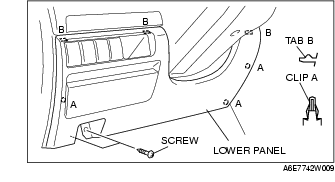

1. Remove the bonnet release lever.

2. Remove the screws.

3. Pull the lower panel toward you, then disengage clips A and tabs B from the dashboard, and remove the lower panel.

4. Install in the reverse order of removal.
