1. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
2. Disconnect the steering angle sensor connector.
3. Connect battery positive voltage to terminal A and ground to terminal F of the steering angle sensor.

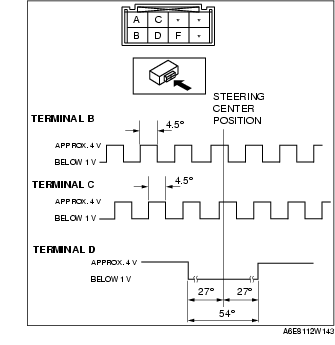

4. Turn the steering wheel to the right and left, and verify that the voltage and pulses at the terminals are as shown in the figure.
