RELAY INSPECTION
RELAY INSPECTION
id092100800300
Relay Type
|
Terminal type
|
Parts name
|
|
Four-terminal
|
Type A
|
• Main relay
• Fuel pump relay
• Starter relay
• TNS relay
• Front fog light relay
• Rear fog light relay
• Horn relay
• Rear window defroster relay
• Woofer relay
• A/C relay
• Blower relay
• Cooling fan relay No.1 (except L3 engine)
• Cooling fan relay No.2
• Cooling fan relay No.3
• Cooling fan relay No.4
• ETC relay
|
|
Type B
|
• Headlight relay
• Glow relay (MZR-CD (RF Turbo) engine only)
|
|
Five-terminal
|
Type C
|
• Cooling fan relay No.1 (L3 engine only)
|
Four-terminal

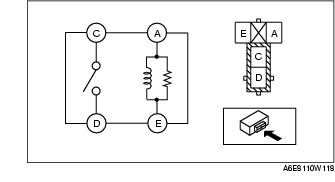

Type A
1. Remove the relay.
2. Inspect for continuity between the relay terminals using a tester.
-
• If there is any malfunction, replace the relay.

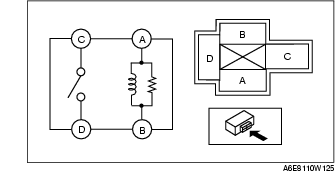

Type B
1. Remove the relay.
2. Inspect for continuity between the relay terminals using a tester.
-
• If there is any malfunction, replace the relay.

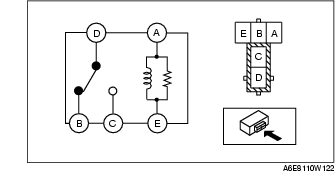

Type C
1. Remove the relay.

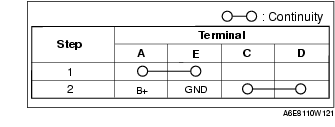

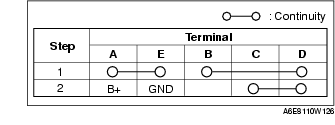

2. Inspect for continuity between the relay terminals using a tester.
-
• If there is any malfunction, replace the relay.
