 BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION

BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION


id094000800400

1. Disconnect the negative battery cable.

2. Remove the front side trim. (Left side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3. Remove the fuse block.

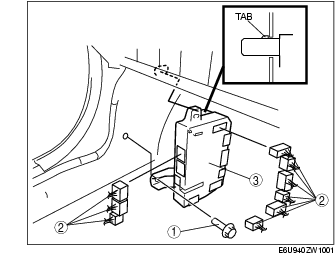

4. Remove in the order indicated in the table.

1
Bolt
2
Connector
3
BCM

5. Install in the reverse order of removal.
