DTC P058A:00 [PCM (SKYACTIV-D)]

Home  id0102t5401100

Note

•  To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".

Details On DTCs

Description	Current sensor: Function malfunction
Detection condition	Determination conditions	•  Error signal from the current sensor is received.
	Preconditions	•  Not applicable.
	Malfunction determination period	•  5 s period
	Drive cycle	•  2
	Self test type	•  CMDTC self test
	Sensor used	•  Current sensor
Fail-safe function	•  Inhibits engine-stop by operating the i-stop function.
Vehicle status when DTCs are output	•  i-stop warning light (amber) flashes •  Master warning display •  Displays a message related to a charge system malfunction in the display. •  Charging system warning indication •  The engine cannot be started or the engine may stall due to battery voltage decrease.

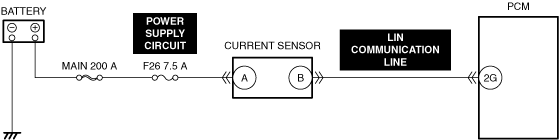

Possible cause	•  Connector or terminal malfunction of the following parts: ―  Current sensor ―  PCM •  Short to ground or open circuit in current sensor power supply circuit •  Short to ground in current sensor LIN communication line •  Short to power supply in any of the following current sensor circuits. ―  Power supply circuit ―  LIN communication line •  Open circuit in current sensor LIN communication line •  Current sensor malfunction •  PCM malfunction

Function Explanation (DTC Detection Outline)

Repeatability Verification Procedure

PID Item/Simulation Item Used In Diagnosis

Function Inspection Using M-MDS

Step	Inspection	Results	Action
1	PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY •  Verify related Service Bulletins, on-line repair information, or Service Information availability. •  Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. •  If the vehicle is not repaired, go to the next step.
		No	Go to the next step.
2	PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION •  Record the freeze frame data/snapshot data. Note •  Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
3	PURPOSE: VERIFY IF CURRENT SENSOR MALFUNCTION IS FALSELY RECOGNIZED BY DTC RELATED CAN OR LIN COMMUNICATION •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D)].) Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
		No	Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.

Troubleshooting Diagnostic Procedure

―  Perform an inspection of each signal transmission system.

―  Perform a unit inspection of the current sensor.

―  Verify that the primary malfunction is resolved and there are no other malfunctions.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY IF CONNECTOR DAMAGE OF EACH PART AFFECTS DIAGNOSTIC RESULTS •  Switch the ignition off. •  Disconnect the connector of the following parts. ―  Current sensor ―  PCM •  Inspect for poor connection (such as damaged/pulled-out pins, corrosion). •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	PURPOSE: INSPECT CURRENT SENSOR POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT •  Inspect the power supply circuit for an open circuit and short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	PURPOSE: INSPECT CURRENT SENSOR LIN COMMUNICATION LINE FOR SHORT TO GROUND •  Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	PURPOSE: INSPECT CURRENT SENSOR POWER SUPPLY CIRCUIT AND LIN COMMUNICATION LINE FOR SHORT TO POWER SUPPLY •  Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	PURPOSE: INSPECT CURRENT SENSOR LIN COMMUNICATION LINE FOR OPEN CIRCUIT •  Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	PURPOSE: INSPECT CURRENT SENSOR FOR MALFUNCTION •  Inspect the applicable part. (See CURRENT SENSOR INSPECTION [SKYACTIV-D 1.8].) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1	PURPOSE: VERIFY THAT VEHICLE IS REPAIRED Caution •  Connect the negative battery terminal before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly. •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ―  Implement the repeatability verification procedure. (See Repeatability Verification Procedure.) •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
		No	Go to the next step.
Repair completion verification 2	PURPOSE: VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
