DTC P2122:00 [PCM (SKYACTIV-D)]

id0102t5708300

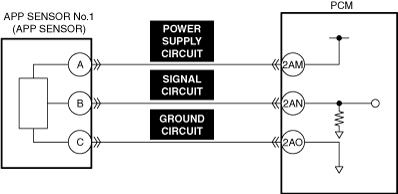

Outline

System malfunction location

APP sensor No.1 circuit low input

Detection condition

•  With the following conditions met, the output voltage of APP sensor No.1 is less than 0.25 V for a continuous 0.5 s.

―  Battery positive voltage: 8—16 V

―  0.5 s have elapsed after ignition is switched ON (engine off or on)

―  The following DTCs are not detected

•  Constant voltage power supply control system: P0642:00, P0643:00

Fail-safe

•  Not applicable

Possible cause

•  APP sensor connector or terminal malfunction

•  Short to ground in any of the following APP sensor No.1 circuits.

―  Power supply circuit

―  Signal circuit

•  PCM connector or terminal malfunction

•  Short circuit in APP sensor No.1 signal circuit and ground circuit

•  Open circuit in any of the following APP sensor No.1 circuits.

―  Power supply circuit

―  Signal circuit

―  Ground circuit

•  APP sensor No.1 malfunction

•  PCM malfunction

System malfunction location	APP sensor No.1 circuit low input
Detection condition	• With the following conditions met, the output voltage of APP sensor No.1 is less than 0.25 V for a continuous 0.5 s. ― Battery positive voltage: 8—16 V ― 0.5 s have elapsed after ignition is switched ON (engine off or on) ― The following DTCs are not detected • Constant voltage power supply control system: P0642:00, P0643:00
Fail-safe	• Not applicable
Possible cause	• APP sensor connector or terminal malfunction • Short to ground in any of the following APP sensor No.1 circuits. ― Power supply circuit ― Signal circuit • PCM connector or terminal malfunction • Short circuit in APP sensor No.1 signal circuit and ground circuit • Open circuit in any of the following APP sensor No.1 circuits. ― Power supply circuit ― Signal circuit ― Ground circuit • APP sensor No.1 malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT APP SENSOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT APP SENSOR No.1 POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT APP SENSOR No.1 GROUND CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT

•  Inspect the applicable circuits for a short circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to repair completion verification.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT APP SENSOR No.1 POWER SUPPLY CIRCUIT, GROUND CIRCUIT AND SIGNAL CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT APP SENSOR No.1 FOR MALFUNCTION

•  Inspect the applicable part.
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-D 1.8])

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8])

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self-test.
(See DTC INSPECTION)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT APP SENSOR CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT APP SENSOR No.1 POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT APP SENSOR No.1 GROUND CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT • Inspect the applicable circuits for a short circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to repair completion verification.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT APP SENSOR No.1 POWER SUPPLY CIRCUIT, GROUND CIRCUIT AND SIGNAL CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT APP SENSOR No.1 FOR MALFUNCTION • Inspect the applicable part. (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-D 1.8]) • Is the part normal?	Yes	Go to the next step.
8		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8])
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Perform the KOEO or KOER self-test. (See DTC INSPECTION) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
