DTC U1007:00 [PCM (SKYACTIV-D)]

DTC U1007:00 [PCM (SKYACTIV-D)]


 id0102t5855400

Note
•  To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".

Details On DTCs

Description

LIN communication system: current sensor information communication error with PCM

Detection condition
Determination conditions
•  PCM detects a current sensor information communication error.
Preconditions
•  The following conditions continue for 1.5 s:
―  Battery voltage: 10 V *1or more
―  Switch the ignition ON (engine off or on)
*1: Standard can be verified by displaying PIDs using M-MDS
Malfunction determination period
•  5 s period
Drive cycle
•  1
Self test type
•  CMDTC self test
Sensor used
•  PCM
Fail-safe function
•  Not applicable
Vehicle status when DTCs are output
•  Not applicable
Possible cause
•  LIN communication line malfunction between current sensor and PCM


Function Explanation (DTC Detection Outline)

•  The PCM detects a DTC when there is a LIN communication error with the PCM and current sensor.

Repeatability Verification Procedure

1.  Switch the ignition ON (engine off or on) and wait for 10 s or more.

PID Item/Simulation Item Used In Diagnosis

•  Not applicable

Function Inspection Using M-MDS

Step

Inspection

Results

Action

1
PURPOSE: VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY
•  Verify related Service Bulletins, on-line repair information, or Service Information availability.
•  Is any related Information available?
Yes
Perform repair or diagnosis according to the available information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
2
PURPOSE: RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
•  Record the freeze frame data/snapshot data.
Note
•  Recording can be facilitated using the screen capture function of the PC.
Go to the next step.
3
PURPOSE: VERIFY OTHER RELATED DTCs
•  Perform the DTC inspection for the PCM.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
No
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.


Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure
•  Step 1—5

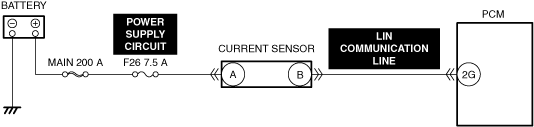

―  Perform an inspection of the connectors and wiring harnesses between the current sensor and the PCM.
•  Repair completion verification
―  Verify that the primary malfunction is resolved and there are no other malfunctions.

Step

Inspection

Results

Action

1
PURPOSE: INSPECT CURRENT SENSOR CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
Note
•  Always disconnect current sensor connector before disconnecting the negative battery cable.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
2
PURPOSE: INSPECT PCM CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
3
PURPOSE: INSPECT CURRENT SENSOR LIN COMMUNICATION LINE FOR SHORT TO GROUND
•  Inspect the applicable circuit for a short to ground.
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
4
PURPOSE: INSPECT CURRENT SENSOR LIN COMMUNICATION LINE FOR OPEN CIRCUIT
•  Inspect the applicable circuit for open circuit.
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
5
PURPOSE: INSPECT CURRENT SENSOR FOR MALFUNCTION
•  Inspect the applicable part.
•  Is the part normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1
PURPOSE: VERIFY THAT VEHICLE IS REPAIRED
•  Install/connect the part removed/disconnected during the troubleshooting procedure.
•  Clear the DTC recorded in the memory.
•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
―  Implement the repeatability verification procedure.
•  Perform the DTC inspection for the PCM.
•  Is the same Pending DTC present?
Yes
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
•  If the malfunction recurs, replace the PCM, then go to the next step.
No
Go to the next step.
Repair completion verification 2
PURPOSE: VERIFY IF OTHER DTCs DISPLAYED
•  Perform the DTC inspection.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
