DTC P048D:00 [PCM (SKYACTIV-D)]

id0102t5856200

Outline

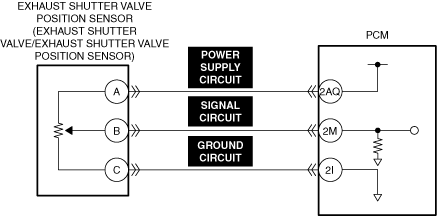

System malfunction location

Exhaust shutter valve position sensor circuit low input

Detection condition

•  If the input voltage at the PCM terminal 2M is less than 0.19 V for 1.5 s, the PCM determines that the exhaust shutter valve position sensor circuit has a malfunction.

―  Battery voltage: 8—16 V

―  0.5 s have elapsed after ignition was switched on.

―  Constant voltage power supply control system DTC P0652:00, P0653:00 not detected.

Fail-safe

•  PCM restricts engine torque.

•  Inhibits the EGR control.

Possible cause

•  Exhaust shutter valve connector or terminals malfunction

•  PCM connector or terminals malfunction

•  Open circuit in any of the following exhaust shutter valve circuits.

―  Power supply circuit

―  Signal circuit

•  Short to ground in any of the following exhaust shutter valve circuits.

―  Power supply circuit

―  Signal circuit

•  Exhaust shutter valve position sensor signal circuit and ground circuit are shorted to each other

•  Exhaust shutter valve position sensor (built-into exhaust shutter valve) malfunction

•  PCM malfunction

System malfunction location	Exhaust shutter valve position sensor circuit low input
Detection condition	• If the input voltage at the PCM terminal 2M is less than 0.19 V for 1.5 s, the PCM determines that the exhaust shutter valve position sensor circuit has a malfunction. ― Battery voltage: 8—16 V ― 0.5 s have elapsed after ignition was switched on. ― Constant voltage power supply control system DTC P0652:00, P0653:00 not detected.
Fail-safe	• PCM restricts engine torque. • Inhibits the EGR control.
Possible cause	• Exhaust shutter valve connector or terminals malfunction • PCM connector or terminals malfunction • Open circuit in any of the following exhaust shutter valve circuits. ― Power supply circuit ― Signal circuit • Short to ground in any of the following exhaust shutter valve circuits. ― Power supply circuit ― Signal circuit • Exhaust shutter valve position sensor signal circuit and ground circuit are shorted to each other • Exhaust shutter valve position sensor (built-into exhaust shutter valve) malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT EXHAUST SHUTTER VALVE CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT EXHAUST SHUTTER VALVE POSITION SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT EXHAUST SHUTTER VALVE POSITION SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT EXHAUST SHUTTER VALVE POSITION SENSOR GROUND CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT

•  Inspect the applicable circuits for a short circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to repair completion verification.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT EXHAUST SHUTTER VALVE POSITION SENSOR FOR MALFUNCTION

•  Inspect the applicable part.
(See EXHAUST SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-D 1.8].)

•  Is the part normal?

Yes

Go to the next step.

No

Inspect the exhaust shutter valve, then go to repair completion verification.

(See EXHAUST SHUTTER VALVE INSPECTION [SKYACTIV-D 1.8].)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
