DTC U0315:00 [PCM (SKYACTIV-D)]

id0102t5901200

Outline

System malfunction location

DSC HU/CM error

Detection condition

•  With the battery voltage 10 V or more, any of the following conditions is continuously met for 3.5 s.

―  Check sum error in signal from DSC HU/CM

―  Counter error in signal from DSC HU/CM

Fail-safe

•  PCM restricts engine torque.

•  Limits the maximum engine speed.

•  Inhibits the DENOx/DESOx control.

•  Inhibits the diesel particulate filter regeneration control.

•  Inhibits the EGR control.

•  Inhibits engine-stop by operating the i-stop function.

Possible cause

•  CAN drive error (instrument cluster or PCM)

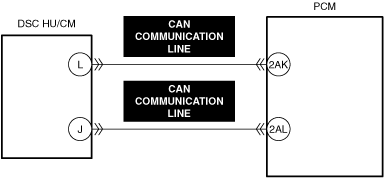

•  CAN communication line malfunction between DSC HU/CM and PCM

•  DSC HU/CM connector or terminals malfunction

•  PCM connector or terminals malfunction

•  DSC HU/CM malfunction

•  PCM malfunction

System malfunction location	DSC HU/CM error
Detection condition	• With the battery voltage 10 V or more, any of the following conditions is continuously met for 3.5 s. ― Check sum error in signal from DSC HU/CM ― Counter error in signal from DSC HU/CM
Fail-safe	• PCM restricts engine torque. • Limits the maximum engine speed. • Inhibits the DENOx/DESOx control. • Inhibits the diesel particulate filter regeneration control. • Inhibits the EGR control. • Inhibits engine-stop by operating the i-stop function.
Possible cause	• CAN drive error (instrument cluster or PCM) • CAN communication line malfunction between DSC HU/CM and PCM • DSC HU/CM connector or terminals malfunction • PCM connector or terminals malfunction • DSC HU/CM malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

VERIFY DSC HU/CM DTC

•  Perform the DTC inspection for the DSC HU/CM.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [DSC HU/CM (E)].)

No

Go to the next step.

4

VERIFY BODY CONTROL MODULE (BCM) DTC

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

5

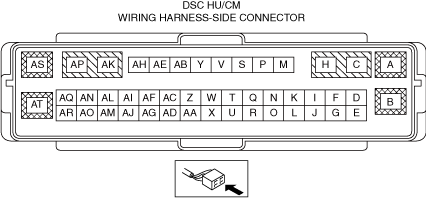

INSPECT DSC HU/CM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

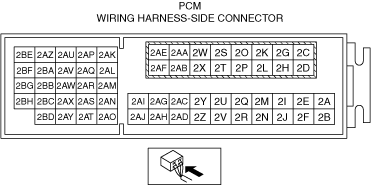

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOEO or KOER self-test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	VERIFY DSC HU/CM DTC • Perform the DTC inspection for the DSC HU/CM. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [DSC HU/CM (E)].)
3		No	Go to the next step.
4	VERIFY BODY CONTROL MODULE (BCM) DTC • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
4		No	Go to the next step.
5	INSPECT DSC HU/CM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Perform the KOEO or KOER self-test. (See DTC INSPECTION.) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
