DTC P25EC:00 [PCM (SKYACTIV-X)]

id0102u9361900

Outline

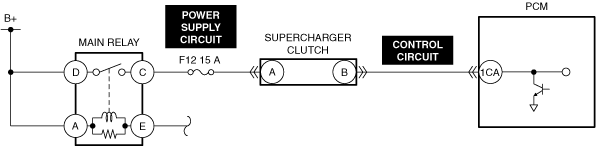

System malfunction location

Supercharger clutch control circuit low input

Detection condition

•  When the PCM controls the supercharger clutch, the voltage input to the PCM is too low.

Fail-safe

•  Inhibits the boost system.

•  Stops the EGR control.

Possible cause

•  Supercharger clutch connector or terminals malfunction

•  F12 15 A fuse malfunction

•  Short to ground in supercharger clutch power supply circuit

•  Open circuit in supercharger clutch power supply circuit

•  PCM connector or terminals malfunction

•  Short to ground in supercharger clutch control circuit

•  Open circuit in supercharger clutch control circuit

•  Supercharger clutch malfunction

•  PCM malfunction

System malfunction location	Supercharger clutch control circuit low input
Detection condition	• When the PCM controls the supercharger clutch, the voltage input to the PCM is too low.
Fail-safe	• Inhibits the boost system. • Stops the EGR control.
Possible cause	• Supercharger clutch connector or terminals malfunction • F12 15 A fuse malfunction • Short to ground in supercharger clutch power supply circuit • Open circuit in supercharger clutch power supply circuit • PCM connector or terminals malfunction • Short to ground in supercharger clutch control circuit • Open circuit in supercharger clutch control circuit • Supercharger clutch malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT SUPERCHARGER CLUTCH CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT F12 15 A FUSE

•  Remove the F12 15 A fuse.

•  Inspect the F12 15 A fuse.

•  Is the fuse normal?

Yes

Reinstall the F12 15 A fuse, then go to the next step.

No

Replace the F12 15 A fuse and perform the repair completion verification 1.

5

INSPECT SUPERCHARGER CLUTCH POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT SUPERCHARGER CLUTCH POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT SUPERCHARGER CLUTCH CONTROL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT SUPERCHARGER CLUTCH CONTROL CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

10

INSPECT SUPERCHARGER CLUTCH FOR MALFUNCTION

•  Inspect the applicable part.
(See SUPERCHARGER CLUTCH INSPECTION [SKYACTIV-X 2.0].)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the intake manifold and perform the repair completion verification.

(See INTAKE MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Perform the KOER self test.
(See DTC INSPECTION.)

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION • Record the freeze frame data/snapshot data. Note • Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY • Verify related Service Bulletins, on-line repair information, or Service Information availability. • Is any related Information available?	Yes	Perform repair or diagnosis according to the available information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT SUPERCHARGER CLUTCH CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT F12 15 A FUSE • Remove the F12 15 A fuse. • Inspect the F12 15 A fuse. • Is the fuse normal?	Yes	Reinstall the F12 15 A fuse, then go to the next step.
4		No	Replace the F12 15 A fuse and perform the repair completion verification 1.
5	INSPECT SUPERCHARGER CLUTCH POWER SUPPLY CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT SUPERCHARGER CLUTCH POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT PCM CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT SUPERCHARGER CLUTCH CONTROL CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
8		No	Repair or replace the malfunctioning location and perform the repair completion verification.
9	INSPECT SUPERCHARGER CLUTCH CONTROL CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
9		No	Repair or replace the malfunctioning location and perform the repair completion verification.
10	INSPECT SUPERCHARGER CLUTCH FOR MALFUNCTION • Inspect the applicable part. (See SUPERCHARGER CLUTCH INSPECTION [SKYACTIV-X 2.0].) • Is the part normal?	Yes	Go to the next step.
10		No	Replace the intake manifold and perform the repair completion verification. (See INTAKE MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Replicate the vehicle conditions at the time the DTC was detected using the following procedure. ― Perform the KOER self test. (See DTC INSPECTION.) • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
