SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0110hf804800
Left Wall (Front)
1. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)
2. Remove the left wall (rear). (See Left wall (front) installation note.)
3. Detach the wiring harness clip shown in the figure.
am3zzw00035600
|
4. Remove the left wall (front).
ac30zw00005292
|
5. Install in the reverse order of removal. (See Left wall (front) installation note.)
Left wall (front) installation note
1. Install the left wall (front).
2. Pass the wiring harness through the groove of the air cleaner case and connect the wiring harness clip to the wiring harness.
ac30zw00004668
|
Left Wall (Rear)
1. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)
2. Detach the fastener from the rear wall and the left wall (front) in the order shown in the figure.
am30jw00001730
|

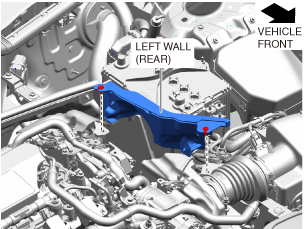

3. Remove the left wall (rear).
ac30zw00004669
|
4. Install in the reverse order of removal.
Rear Wall
1. Remove the engine cover. (See .ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2. Remove the left wall (rear). (See Left Wall (Rear))

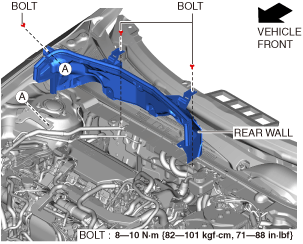

3. Remove the rear wall.
ac30zw00005293
|
4. Install in the reverse order of removal.
Right Wall
1. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

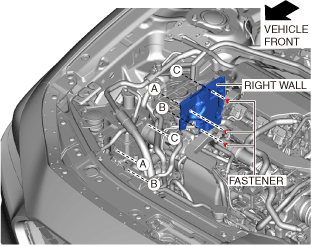

2. Remove the right wall.
ac30zw00005294
|
3. Install in the reverse order of removal.
