FRONT OIL SEAL REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

Home  id0110u3800800

Special Service Tool (SST)

1.  : Mazda SST number 2.  : Global SST number
1: 49 UN20 5072 2: 205–072   Holder		1: 49 B011 105 2: –   Adapter		1: 49 G028 205 2: –   Oil seal installer

Replacement Part

Oil and Chemical Type

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

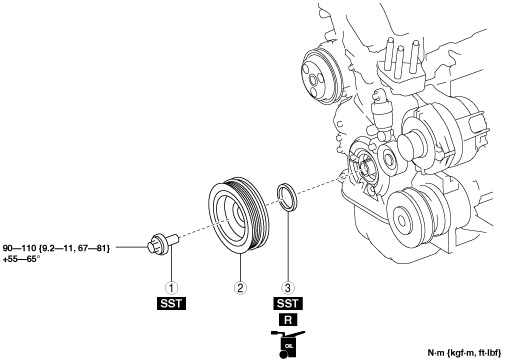

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

ac5uuw00003290

1	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note.) (See Crankshaft Pulley Lock Bolt Installation Note.)
2	Crankshaft pulley
3	Front oil seal (See Front Oil Seal Removal Note.) (See Front Oil Seal Installation Note.)

Crankshaft Pulley Lock Bolt Removal Note

Caution

•  To prevent damage to the crankshaft pulley, protect the crankshaft pulley with a clean cloth so that the bar part (205-072) of the SST does not contact the crankshaft pulley.

•  To prevent damage to the engine front cover, be careful not to allow the tab part (49 B011 105) of the SST to get caught between the crankshaft pulley and the engine front cover.

1.  Hold the crankshaft pulley using the SSTs.

ac5uuw00000501

2.  Remove the crankshaft pulley lock bolt.

Front Oil Seal Removal Note

1.  Cut the front oil seal lip using a utility knife.

2.  Remove the front oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

ac5uuw00003291

Front Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new front oil seal.

2.  Insert the front oil seal into the engine front cover by hand.

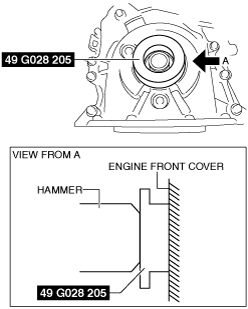

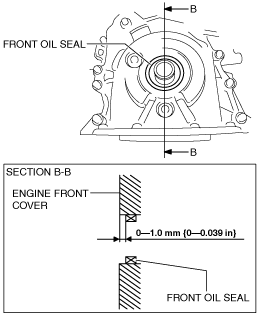

3.  Tap the front oil seal in evenly using the SST and a hammer.

am3uuw00008830

ac5uuw00003292

Crankshaft Pulley Lock Bolt Installation Note

Caution

•  To prevent damage to the crankshaft pulley, protect the crankshaft pulley with a clean cloth so that the bar part (205-072) of the SST does not contact the crankshaft pulley.

•  To prevent damage to the engine front cover, be careful not to allow the tab part (49 B011 105) of the SST to get caught between the crankshaft pulley and the engine front cover.

1.  Hold the crankshaft pulley using the SSTs.

ac5uuw00000502

2.  Tighten the crankshaft pulley lock bolt in the order shown in the following two steps.
