SPLASH SHIELD REMOVAL/INSTALLATION
id091600808400
Front Splash Shield
1. Lift up the vehicle.
2. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
3. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)
4. Remove the fasteners.

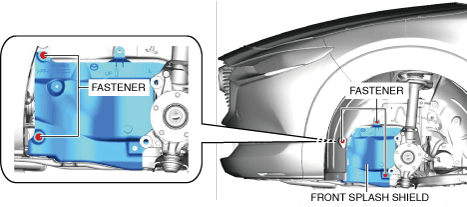

ac30zw00001488
|
5. Remove the front splash shield.
6. Install in the reverse order of removal.
Rear Splash Shield
1. Remove the rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)
2. Remove the screws, fasteners and cap nut.

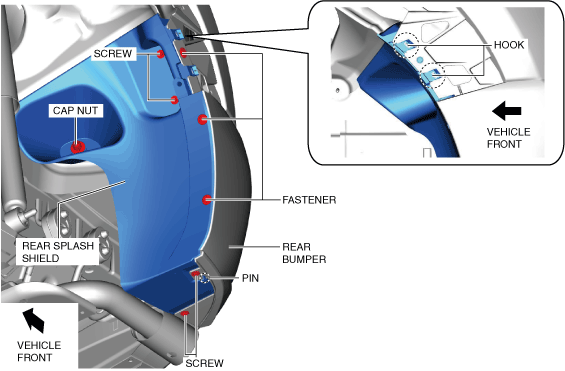

ac30zw00001489
|
3. Detach the hooks.
4. Remove the rear splash shield while detaching the pin.
5. Install in the reverse order of removal.
