REAR OIL SEAL REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

REAR OIL SEAL REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]


 id0110u3800900

Special Service Tool (SST)

49 S033 101

Dust cover installer

Replacement Part

Rear oil seal

Quantity: 1

Location of use: Cylinder block

Oil and Chemical Type

Engine oil

Type: Recommended oil

1.  Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R (SKYACTIV-G 2.0)]. (MTX,2WD))(See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66MX-R (SKYACTIV-G 2.0)]. (MTX,AWD))(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6A-EL (E)]. (ATX,2WD))(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EV6AX-EL (E)]. (ATX,AWD))

2.  Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R, C66MX-R]. (MTX)) (See DRIVE PLATE REMOVAL/INSTALLATION [EV6A-EL, EV6AX-EL]. (ATX))

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

ac5wzw00010796

1
Rear oil seal


Rear Oil Seal Removal Note

1.  Cut the rear oil seal lip using a utility knife.

2.  Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

am3zzw00032447


Rear Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new rear oil seal.

2.  Insert the rear oil seal into the cylinder block by hand.

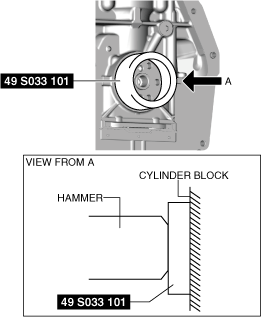

3.  Tap the rear oil seal in evenly using the SST and a hammer.

ac5wzw00010798
ac5wzw00010799

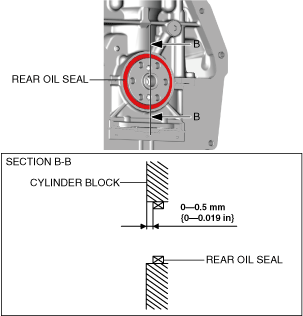

Rear oil seal press on amount
0—0.5 mm {0—0.019 in} from edge surface of cylinder block
