COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0112hf801000
1. Remove the right wall. (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2. Remove the coolant reserve tank cap and hose as a single unit.
3. Remove using the procedure shown in the figure.
4. Install in the reverse order of removal.
ac30zw00002201
|
|
1
|
Bracket
|
|
2
|
Coolant reserve tank
|

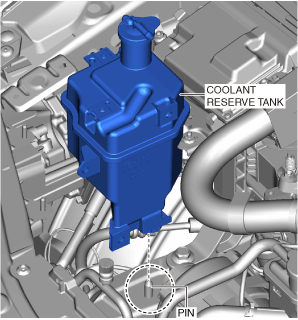

Coolant Reserve Tank Installation Note
1. Insert the projection into the rubber mount.
am3zzw00035926
|
