COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

Home  id0112t1801900

Warning

•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front under cover No.1 and the front under cover No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)(See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

•  Air hose

•  Air cleaner cover

•  Air cleaner element

•  Air cleaner case

•  Fresh-air duct

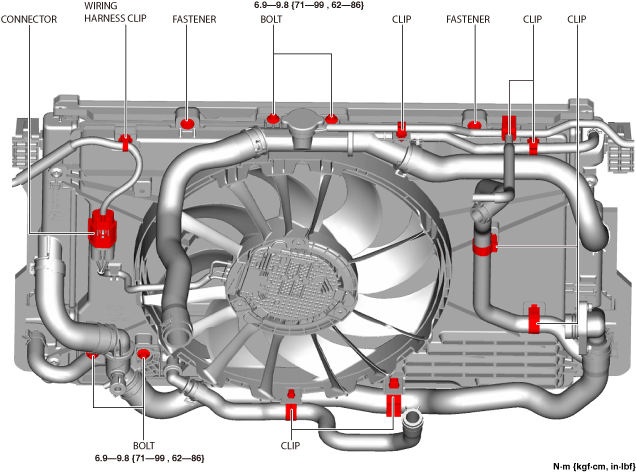

4.  Remove or disconnect the following parts;

•  Bolt

•  Clip

•  Fastener

•  Wiring harness clip

•  Connector

am3zzw00031330

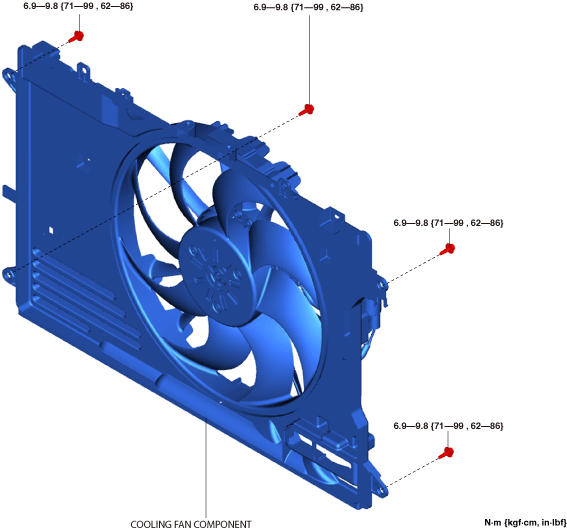

5.  Remove the cooling fan component.

am3zzw00031331

6.  Install in the reverse order of removal.

Cooling Fan Component Removal Note

1.  Remove the cooling fan component from below the engine compartment.
