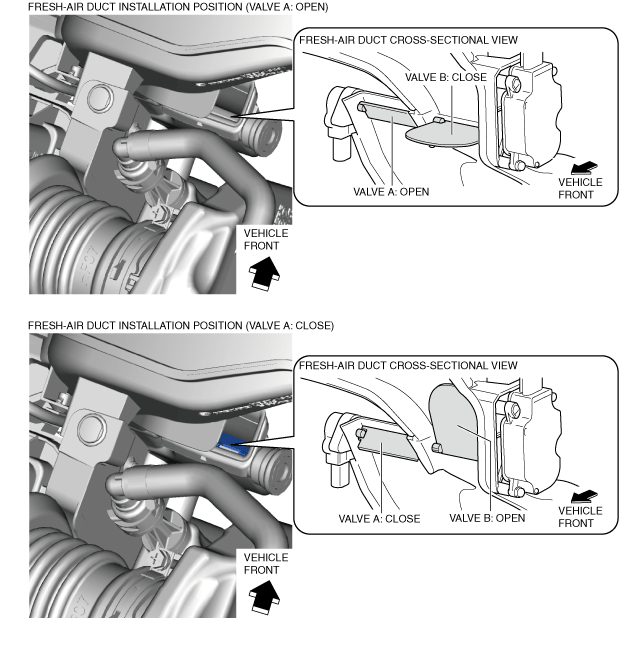

• Verify that valve A of the fresh-air duct is in the closed position with the ignition switched OFF.
am3zzw00035127
|
• Start the engine and verify that valve A of the fresh-air duct is driven to the open position immediately after the engine start.
-
― If this operation cannot be verified, replace the fresh-air duct. (See AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
